Heat Transfer Surface Wood Grain Aluminium Profile Section For Construction
  • Heat Transfer Surface Wood Grain Aluminium Profile Section For Construction
  • Heat Transfer Surface Wood Grain Aluminium Profile Section For Construction
  • Heat Transfer Surface Wood Grain Aluminium Profile Section For Construction

Heat Transfer Surface Wood Grain Aluminium Profile Section For Construction

Place of Origin Guangdong,China(mainland)
Brand Name HONG YING
Certification ISO9001:2022,ISO14001:2022
Model Number Customize
Product Details
Material:
6063 Aluminum Alloy
Thickness:
0.8-2.0mm
Temper:
T5
Shape:
Customized,window Door Frame,etc
Length:
6.0 Meters
Usage:
Window,Door,Construction,etc
Color:
Wood Color Series
Technology:
Heat Transfer,3d Print
High Light:

Wood Grain Aluminium Profile Section

,

Heat Transfer Surface Aluminium Profile Section

,

6063 Aluminium Profile Section

Payment & Shipping Terms
Minimum Order Quantity
5 Ton
Price
Negotiation
Packaging Details
protective film for each piece, then each bundle in shrinking bag or pearl botton.or according to customer request
Delivery Time
Within 25-35 days after receive deposit and moulds are passed.
Payment Terms
L/C, T/T, D/A, D/P, , MoneyGram
Supply Ability
5000 tons per month
Product Description

South America Wood Grain Aluminum Profiles Heat Transfer Surface Aluminium Section for Construction



Wood Grain Aluminum Profiles:



Wood grain transfer profile refers to the rapid transfer and penetration of the wood grain pattern on the transfer paper or transfer film onto the sprayed or electrophoretic profile by heating and pressing on the basis of powder spraying or electrophoretic painting and according to the principle of high-temperature sublimation thermal penetration. The produced wood grain profile has clear texture, strong three-dimensional sense, and can better reflect the natural feeling of wood grain. It is an ideal energy-saving and environmental protection material to replace traditional wood.

Wood grain has strong adhesion to aluminum, non-toxic, odorless and easy to clean. The product has clear and lifelike grain, strong three-dimensional sense, good decorative effect and visual effect of returning to nature. The coating film sprayed on the surface of aluminum profiles is non-volatile, non oxidizing in the air, and has no pollution to the environment. Once cleaned, the dirt deposited on the spraying surface can restore its original luster and appearance.



Process -: suitable for large area or abnormal substrate

Suitable for large area or abnormal substrate

Step 1: select the substrate that has been sprayed or electrophoresed

Step 2: wrap the transferred substrate with wood grain thermal transfer paper, and fix the paper interface with high-temperature resistant adhesive tape to prevent the wood grain thermal transfer paper from loosening. (Note: the front of the wood grain thermal transfer paper should be pasted to the surface of the transferred substrate.)

Step 3: put a tubular plastic bag with high temperature resistance and good sealing performance on the base material wrapped by wood grain thermal transfer paper, and then vacuum it from both ends of the plastic bag until the plastic bag can fully and effectively adhere to the base material.



Aluminum Wood Grain Profiles:



Process 1: suitable for large area or abnormal substrate

Step 1: select the substrate that has been sprayed or electrophoresed

Step 2: wrap the transferred substrate with wood grain thermal transfer paper, and fix the paper interface with high-temperature resistant adhesive tape to prevent the wood grain thermal transfer paper from loosening. (Note: the front of the wood grain thermal transfer paper should be pasted to the surface of the transferred substrate.)

Step 3: put a tubular plastic bag with high temperature resistance and good sealing performance on the base material wrapped by wood grain thermal transfer paper, and then vacuum it from both ends of the plastic bag until the plastic bag can fully and effectively adhere to the base material. The negative pressure of the vacuum should be properly adjusted according to the characteristics of the transferred substrate and the negative pressure that the plastic bag can withstand, usually between 0.3 and 0.8MPa. (Note: the purpose of using plastic bags is to make the plastic bags that have adhered to the substrate fully and effectively adhere to the substrate through negative pressure.)

Step 4: send the wrapped substrate to the oven for baking. The baking temperature and time should be adjusted according to the characteristics of the substrate to be transferred, the depth of the texture to be transferred and the specific performance of the oven. Generally, the temperature of transfer is 160 ~ 180 ℃, and the time is 5 ~ 8 minutes

Step 5: take out the transferred substrate from the oven, pull off the plastic bag from one end of the transferred substrate (Note: this plastic bag can be reused), tear off the thermal transfer paper and clean the surface



Specification of Profiles:



Description South America Wood Grain Aluminum Profiles Heat Transfer Surface Aluminium Section for Construction
Material Thickness(t) 0.8-3.0 mm
Materiral aluminum alloy 6063
Annealing Treatment T3-T8,etc
Color wood color series(red/brown/yellow,etc), or (RAL series)etc.
Surface Treatment shavings wood grain, anodized, powder coated, electrophoresis, polished and etc
Shape Customized,t shape,thermal break,u shape,square,rectangle,etc and according to customer's drawing.
Length Normal length=6m or in customer's order
Usage Building, Production Line, Decoration, Industrial, Transportation, Door and window, etc.
Package

1. Pearl cotton foam for each profile;

2. Wrap with shrink film exterior;

3. Packed according to customer request.

Advantages/Features

Providing colorful products with various mechanical

performances to adapt all kinds of architectural styles



Wood Grain Aluminum Profiles:



Wood grain coloring is a process of applying a wood grain effect onto aluminum profiles. This beautiful finish has all of the distinctiveness of wood and gives the customer all the aesthetic benefits of real timber with none of the maintenance costs.



Advantages

Realistic, high-definition appearance
Affords new design elements and adds value to projects
Durable finish protects humidity and UV rays
Eco-friendly processes, saves on waste while averting harsh pollutants



Process
YONGLONG Aluminum uses the sublimation process to create wood grain finish on aluminum extrusion profiles. This process is a physical-chemical process, which is the direct transition of a substance the solid phase to the gas phase. The aluminum profile must be in powder coated or electrophoresis treatment firstly. Cover the aluminum with wood grain paper or heat transfer printing film/paper, then put it into the oven for 170-200℃ backing. Remove the film when time is up. Then you will get a bright wood grain color.Wood Finish Aluminium Profiles



Applications

Wood grain finish aluminum profiles offers a nature timber appealing, environmentally friendly solution for many products in architectural building construction and home interior industry, such as windows and doors, curtain wall and facade, louvers, railing, decking, furniture, ceiling and cladding, house siding, garden fence and gate, cabinets, appliance, etc. The wood grain finish is ideally suited for applications where architects prefer to see a natural wood appearance.Wood Finish Aluminium Profiles.



Photos:

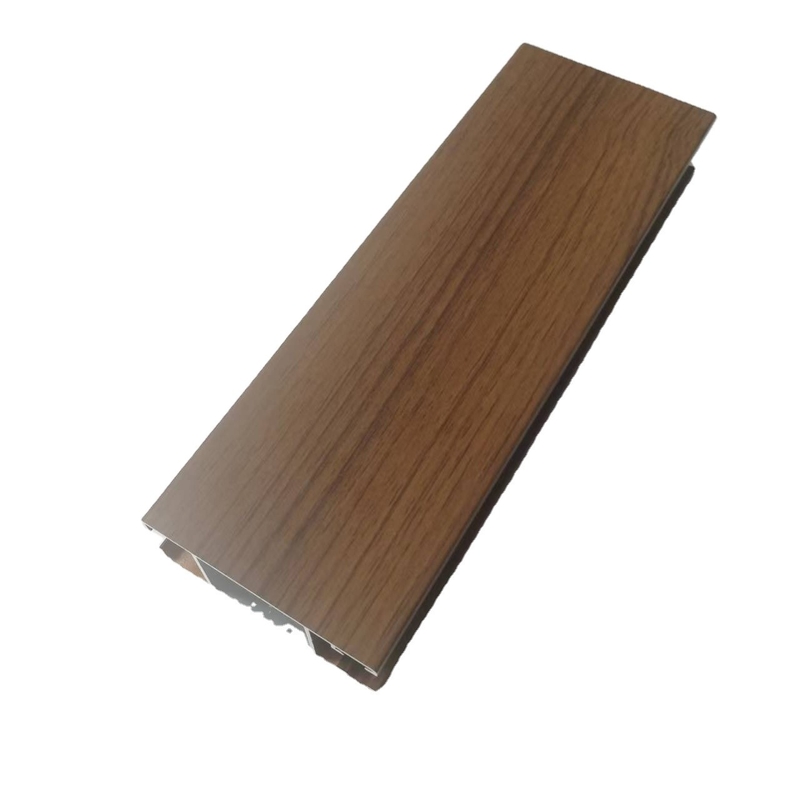

Heat Transfer Surface Wood Grain Aluminium Profile Section For Construction 0



Please tell us the information below, and we will give the best suggestion to you!

1. Where you intend to use the aluminium profiles?
2. If you have the estrusion drawing, send us and we develop the correspondence mold.
3. Which color you want or tell us the architectural style you like.
4. Purchase quantity. It will convenient us to give you the best price.
