3D Touching Wood Finish Aluminium Profiles Heat Transfer For Outdoor

3D Touching Wood Finish Aluminium Profiles Heat Transfer For Outdoor

Product Details:

Place of Origin: Guangdong,China(mainland)
Brand Name: HONG YING
Certification: ISO9001:2016,ISO14001:2016
Model Number: Customize

Payment & Shipping Terms:

Minimum Order Quantity: 5 Ton
Price: Negotiation
Packaging Details: protective film for each piece, then each bundle in shrinking bag or pearl botton.or according to customer request
Delivery Time: Within 25-35 days after receive deposit and moulds are passed.
Payment Terms: L/C, T/T, D/A, D/P, , MoneyGram
Supply Ability: 5000 tons per month
Get Best Price Contact Now

Detail Information

Features: Heat Transfer Wood Grain,touching Wood Grain,etc Alloy: 6063 T5
Thickness: 0.8-5.0mm Shape: Customized,OEM,according To Drawings
Length: 6.0-7.2 Meters Usage: Outdoors
Color: Wood Color Series(red,brown,yellow Series)
High Light:

T5 Wood Finish Aluminium Profiles


5.0mm Thickness Wood Finish Aluminium Profiles

Product Description

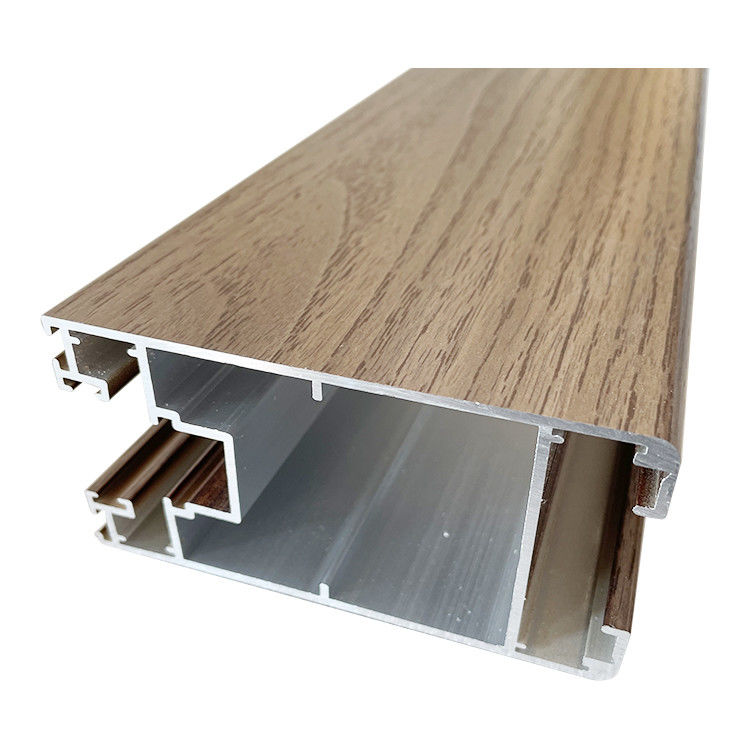

3D Touching Wood Finish Aluminium Profiles Heat Transfer For Outdoor

3D Touching Wood Finish Aluminium Profiles Wood Grain Heat Transfer For Outdoors


Touching Wood Grain Aluminum Profiles:


Recently, the new products in the market, such as three-dimensional wood grain of shaving and Pu top-grade wood grain aluminum profile, have realistic natural wood visual effect and three-dimensional wood grain touch on the surface. At present, this product has set off a boom in the domestic and foreign markets, especially attracted the attention of metal door Enterprises.

Compared with PE wood grain transfer aluminum profile, the wood grain aluminum profile adopts large vertical automatic spraying production line, high-quality PU powder spraying and transfer printing. After three coating and three drying treatment, the surface effect adopts the current fashion sand surface effect and European three-dimensional relief line, which has strong three-dimensional wood grain effect and super sense of hierarchy, All matte three-dimensional and sand light strip effect can be selected, and the weather resistance can be up to 10 years. With three layers of coating, the aluminum profile surface has super wear resistance, which can fundamentally solve the common PE watermark, orange peel, easy to wear, particle, fuzzy, texture hardness phenomenon. It is the mainstream product of personalized metal door industry in the future.

(PU) top grade wood grain aluminum profile is sprayed and printed with polyurethane powder. After two coating and two drying treatment, the surface powder has stronger adhesion, higher hardness and better wear resistance. The product is also manually polished for many times to make the surface of aluminum profile more smooth, fine, dust-free, glossy, bright, clearer texture and strong sense of wood, which fully solves the problems of common PE powder watermark, orange peel, orange peel Fuzzy phenomenon makes the matching effect of aluminum profile and solid wood furniture better and higher grade, and * * is the best choice for * *.
Three dimensional wood grain and (PU) top grade wood grain aluminum profile fully demonstrate the personality of metal door industry, which may set off a wave of fashion.


Specification of Profile:


Description Touching Wood Finish Aluminium Profiles Wood Grain Heat Transfer For Outdoors
Material Thickness(t) 0.8-2.0 mm
Materiral aluminum alloy 6063
Annealing Treatment T3-T8,etc
Color wood color series(red/brown/yellow,etc), or (RAL series)etc.
Surface Treatment shavings wood grain, anodized, powder coated, electrophoresis, polished and etc
Shape Customized,t shape,thermal break,u shape,square,rectangle,etc and according to customer's drawing.
Length Normal length=6m or in customer's order
Usage Building, Production Line, Decoration, Industrial, Transportation, Door and window, etc.

1. Pearl cotton foam for each profile;

2. Wrap with shrink film exterior;

3. Packed according to customer request.


Providing colorful products with various mechanical

performances to adapt all kinds of architectural styles


Wood Grain Process:


Wood grain coloring is a process of applying a wood grain effect onto aluminum profiles. This beautiful finish has all of the distinctiveness of wood and gives the customer all the aesthetic benefits of real timber with none of the maintenance costs.



Realistic, high-definition appearance
Affords new design elements and adds value to projects
Durable finish protects humidity and UV rays
Eco-friendly processes, saves on waste while averting harsh pollutants


YONGLONG Aluminum uses the sublimation process to create wood grain finish on aluminum extrusion profiles. This process is a physical-chemical process, which is the direct transition of a substance the solid phase to the gas phase. The aluminum profile must be in powder coated or electrophoresis treatment firstly. Cover the aluminum with wood grain paper or heat transfer printing film/paper, then put it into the oven for 170-200℃ backing. Remove the film when time is up. Then you will get a bright wood grain color.Wood Finish Aluminium Profiles



Wood grain finish aluminum profiles offers a nature timber appealing, environmentally friendly solution for many products in architectural building construction and home interior industry, such as windows and doors, curtain wall and facade, louvers, railing, decking, furniture, ceiling and cladding, house siding, garden fence and gate, cabinets, appliance, etc. The wood grain finish is ideally suited for applications where architects prefer to see a natural wood appearance.Wood Finish Aluminium Profiles


3D Touching Wood Finish Aluminium Profiles Heat Transfer For Outdoor 0

Corporate Introduction:


Corporate Overview:

Guangdong Yong long Aluminum Co., Ltd. is located in the No. 10 (Sanjiang market) of Leping Town, Sanshui District, Foshan. The company was founded in 1997. It is a comprehensive and large-scale aluminum profile enterprise integrating the research and development, production and sales of aluminum alloy profiles. The company is leading the "Hong Ying" brand. Strong comprehensive strength and excellent service make Yong long "Hong Ying" sell well all over the country and exported to Southeast Asia, Europe, South America and many other countries.Wood Finish Aluminium Profiles


Our company has 900 employees, including 120 high and intermediate engineering technology and management personnel, with advanced and perfect design, production, testing and testing methods as well as perfect sales network and after-sales service system. The products sell well in more than 10 national and foreign ports, Australia and Taiwan areas.Wood Finish Aluminium Profiles


Corporate Advantages:

1.20 years' experience and advanced equipment

2.Customize: We can manufacture according to your size and shape of such aluminum profile;

3.Strong production capacity - 28 extrusion lines, 50,000TONS/Year

4.One Stop Service Specialized in mould, extrusion, anodizing, powder coating, wood grain and Processing;

5.Shortest Delivery , competitive prices and excellent service


Corporate Culture:

The company insisted: "unity and progress, pioneering and innovative, high quality of this, service to win" business purposes, the new full cooperation with customers, Gongtuo career, create a better future.


When you work with us, you can expect top-quality resources and parts, excellent customer service, and to be treated like family. We’re invested in this industry and our clients. When you work with us, you can tell the difference!



3D Touching Wood Finish Aluminium Profiles Heat Transfer For Outdoor 1




Please tell us the information below, and we will give the best suggestion to you!

1. Where you intend to use the aluminium profiles?
2. If you have the estrusion drawing, send us and we develop the correspondence mold.
3. Which color you want or tell us the architectural style you like.
4. Purchase quantity. It will convenient us to give you the best price.



Want to Know more details about this product
I am interested in 3D Touching Wood Finish Aluminium Profiles Heat Transfer For Outdoor could you send me more details such as type, size, quantity, material, etc.
Waiting for your reply.
