Product Details:
|
Material: | 6060,6061,6082 7010 Aluminum Alloy | Thickness: | 1.0-10.0mm |
---|---|---|---|
Temper: | T3-T8 | Surface Treatment: | Mill Finish,no Paint |
Color: | Silver,black | Application: | Led Light Strip,etc |
High Light: | T8 Heat Sink Aluminium Enclosure Extrusion,T3 Extruded Aluminum Enclosure Profiles,10.0mm Thickness Aluminum Heatsink Extrusion Profiles |
L structural features of line lamp: LED line lamp is an aluminum profile lamp body of LED wall washing lamp series. The small and lightweight end cover and mounting bracket adopt aluminum alloy high-pressure die-casting high-temperature resistant silicone rubber sealing ring to ensure waterproof reliability. Lamps can be installed in single or multiple combinations. Suitable for all kinds of buildings, indoor or outdoor local or outline lighting.
Material and features: the lamp shell is made of aluminum alloy, with clear lines, simple structure and beautiful appearance. rugged corrosion resistant and easy to install. The surface of the lamp is treated by electrostatic spraying, which has good high temperature resistance and weather resistance. The reflector adopts imported anodized aluminum plate to ensure high light output. 3mm thick high strength tempered glass with high light transmittance and impact resistance. Built in guarantee level up to IP65. Technical parameter table model: hx-xq color range: red yellow blue green white and color beam angle: 15 ° - 60 ° light irradiation distance: 20m control system: DMX512 controller or wall washing lamp simple controller shell material aluminum alloy connection standard signal power line connector 3-pin signal connector.
2. Optimize the design and manufacture of aluminum extrusion die
Extrusion die is an important tool to ensure the shape and dimensional accuracy of solar photovoltaic aluminum profile products. The design and manufacturing quality of extrusion die is an important guarantee to realize high quality, high yield, low consumption, high efficiency and low cost of extrusion production. Therefore, in order to produce high-precision photovoltaic aluminum alloy profiles, it is necessary to optimize the design and manufacture of extrusion die.
2.1 adopt advanced extrusion die manufacturing equipment
High precision advanced extrusion die processing equipment is the prerequisite to ensure the metal extrusion die qualified. Therefore, the production of photovoltaic aluminum alloy profiles should use advanced mold processing equipment, such as CNC, slow wire cutting, three-axis machining center, EDM center to improve the machining accuracy and performance of the mold.
3. Chemical composition control
6063 aluminum alloy is used for production, and its chemical composition control is shown in Table 1.
The practice shows that 6063 aluminum alloy has become an important choice for the production of high precision photovoltaic aluminum alloy profiles. 6063 Al Mg Si alloy can be strengthened by heat treatment. The strengthening phase of the alloy is Mg2Si. The alloy has good extrusion property, low quenching sensitivity, good high temperature plasticity, wide quenching temperature range and low critical quenching speed. Within the composition range of 6063 aluminum alloy specified in the national standard GB / t3190, different values of chemical composition will lead to different material characteristics. When the range of chemical composition is large, the performance difference will fluctuate in a large range, so that the comprehensive performance of the profile will be difficult to control. In order to ensure the precision of photovoltaic aluminum alloy profile, it is necessary to
The chemical composition of the alloy must be determined in strict accordance with the enterprise control standard.
4. Smelting, casting and ingot homogenization process
4.1 smelting and refining process
The melting temperature is 720-760 ℃. When the temperature is above 720 ℃, high purity nitrogen is used to blow in refining agent for 15min, the amount of refining agent is 0.08% of the melt weight, after refining, electromagnetic stirring is used for 15min, and the liquid aluminum is allowed to stand for 20-30min. The chemical composition of aluminum alloy solution shall be strictly controlled for sampling inspection to make the material reach the required mechanical properties.
4.2 casting process
Semi continuous direct water cooling casting method was adopted. The direct water cooling method has the advantages of high cooling intensity and high cooling speed, which can refine the casting structure, increase the density of the structure, and improve the mechanical properties and heat treatment effect of the ingot. The casting temperature is 710-730 ℃, the casting speed is 50-70mm / min, and the cooling water pressure is 0.1-0.3mpa. In order to reduce the tendency of hot cracking and improve the chemical composition of the alloy, Al Ti B wire was added online at the rate of 1700-2000mm / min.
4.3 homogenization treatment of cast bar structure
In order to reduce and eliminate intragranular segregation of ingot and improve the inhomogeneity of chemical composition and microstructure, homogenization treatment was carried out on aluminum alloy casting bar. The technical conditions are as follows: heating the casting rod to 540-550 ℃, holding for 8-10h, strong wind cooling and water mist cooling. Cooling should be accelerated after homogenization annealing to ensure the color uniformity after anodization.

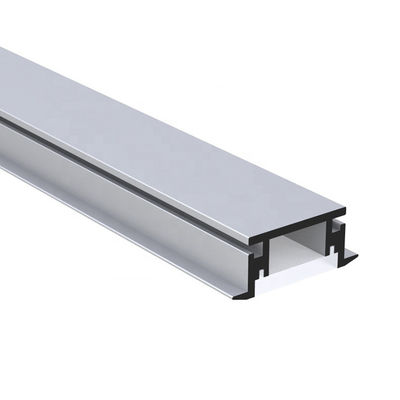

Description | Aluminium Heat Sink Enclosure Extrusion For Led Strips Light Decorations |
Material Thickness(t) | 1.0-10.0 mm |
Materiral | aluminum alloy 6061,6082 |
Annealing Treatment | T3-T8 |
Color | Silver |
Surface Treatment | mill finish,anodized, powder coated, electrophoresis, wood grain, polished and etc |
Shape | Square, Round, Flat, Oval, and according to customer's drawing. |
Length | Normal length=6m or in customer's order |
Usage | solar new energy |
Package |
1. Pearl cotton foam for each profile; 2. Wrap with shrink film exterior; 3. Packed according to customer request. |
Advantages/Features |
Providing colorful products with various mechanical performances to adapt all kinds of architectural styles |
After years of development, the company passed the ISO9001: 2000 quality system certification, the international standard product certification. Yonglong Aluminum has won the "Guangdong Province Famous Brand", "Guangdong Province Famous Brand", "ISO14001 Environmental Management System Certification", "OHSMS18001 Occupational Health and Safety Management System Certification", "Adopting International Standard Products" Is "," China's quality products "and other certificates. Companies adhere to the scientific concept of development, by strengthening the comprehensive management and increase innovation, and continuously enhance the energy-saving emission reduction enterprises to accelerate into the environment-friendly modern enterprise list.
The density of aluminum profile is only 2.7g/cm3, about one third of that of steel, copper or brass (7.83g/cm3, 8.93g/cm3). Aluminum exhibits excellent corrosion resistance under most environmental conditions, including air, water (or brine), petrochemicals, and many chemical systems.
Conductivity
Aluminum profile is often selected because of its excellent conductivity. Aluminum is almost twice as conductive as copper by weight.
Rate thermal conductivity
The thermal conductivity of aluminum alloy is about 50-60% of that of copper. It is used to manufacture heat exchangers, evaporators, heating appliances, cooking utensils, cylinder heads and radiators for automobiles.
Ferromagnetic
Aluminum profiles are non ferromagnetic, which is an important feature of the electrical and electronic industries. Aluminum profiles do not self ignite, which is very important for applications involving handling or contacting flammable and explosive materials.
Machinability of can making machine
The processing performance of aluminum profile is excellent. In the process of deformation and casting of aluminum alloy, as well as in various states after the output of aluminum alloy, the processing characteristics change greatly, which requires a special machine tool or process.
Formability
Specific tensile strength, yield strength, ductility and corresponding work hardening rate determine the variation of allowable deformation.
Circularity
Aluminum is very recyclable, and the performance of recycled aluminum is almost indistinguishable from that of natural aluminum.
1. Where you intend to use the aluminium profiles?
2. If you have the estrusion drawing, send us and we develop the correspondence mold.
3. Which color you want or tell us the architectural style you like.
4. Purchase quantity. It will convenient us to give you the best price.
