Powder Coated Aluminium Extrusions
>
|
|
| Place of Origin | Guangdong,China(mainland) |
| Brand Name | HONG YING |
| Certification | ISO9001:2022,ISO14001:2022 |
| Model Number | Customized |
Electrostatic powder spraying
Use electrostatic powder spraying equipment to spray the powder coating on the surface of the workpiece. Under the action of static electricity, the powder will be evenly adsorbed on the surface of the workpiece to form a powdery coating. The powdery coating will become the final coating with different effects after high-temperature baking, leveling and curing. The spraying effect is far better than the painting process in terms of mechanical strength, adhesion, corrosion resistance, aging resistance, etc.
Fluorocarbon spraying
Fluorocarbon spraying is a kind of electrostatic spraying and liquid spraying. The fluorocarbon spray coating used is a coating made of polyvinylidene fluoride resin nch2cf2 baking (ch2cf2) n (PVDF) as the base material or with metal aluminum powder as the color material. There are suspension type and semi suspension type. The suspension type refers to the pretreatment and spraying of aluminum materials, and the aluminum materials will be suspended during the curing process. Fluorocarbon coating with excellent quality has metallic luster, bright color and clear three-dimensional feeling at a glance.
The difference between electrostatic powder spraying and fluorocarbon spraying: powder spraying is to use powder spraying equipment (electrostatic plastic spraying machine) to spray powder coating on the surface of the workpiece. Under the action of static electricity, the powder will be evenly adsorbed on the surface of the workpiece to form a powdery coating. Fluorocarbon spraying is a kind of electrostatic spraying and liquid spraying, which is called fluorocarbon spraying and curium oil.
| Description |

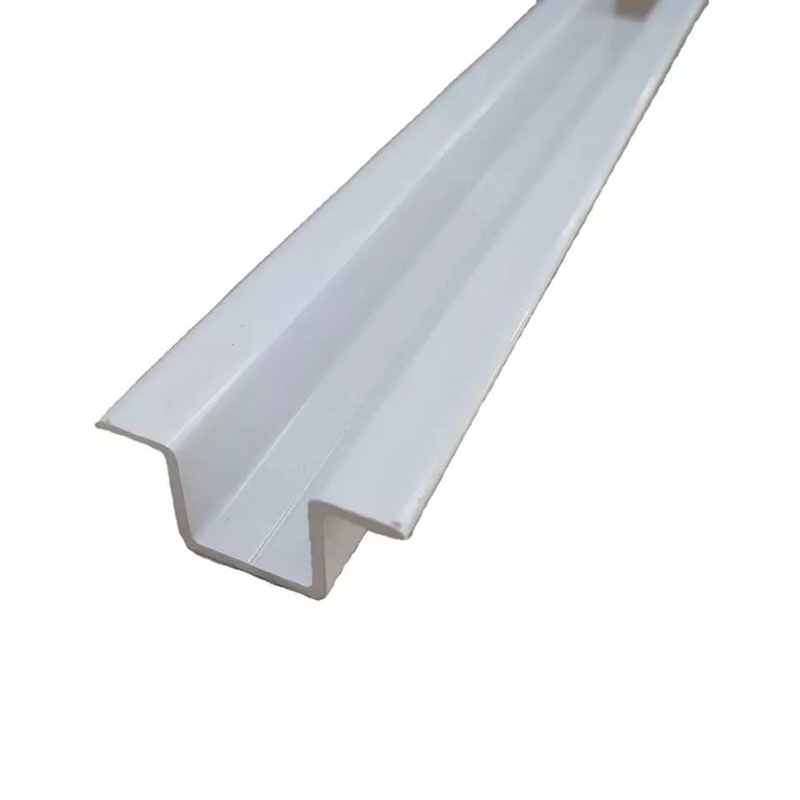

Hot Sale White Color Aluminium Extruded Profiles for Kitchen Cabinet Door U Corner |
| Material Thickness(t) | t=0.8-2.0 mm |
| Materiral | Aluminum Alloy 6063 |
| Annealing Treatment | T3-T8 |
| Color | Champagne, Silver White ,Bronze, Grey, Black, (RAL series)etc. |
| Surface Treatment | electrophoresis, anodized, wood grain, polished and etc |
| Shape | Break Bridge,T Shape,Square, Round, Flat, Oval, and according to customer's drawing. |
| Length | Normal length=6m or in customer's order |
| Usage | Building, Production Line, Decoration, Industrial, Transportation, Door and window, etc. |
| Package |
1. Pearl cotton foam for each profile; |
| Advantages/Features |
Providing colorful products with various mechanical |
1. Compared with other aluminum profile surface treatment methods, it has higher utilization rate and saves more paint;
2. Through electrostatic spraying, less paint is emitted to the environment, thus improving the working environment of workers;
3. It is convenient for automatic production and can improve production efficiency;
4. For some complex aluminum profile workpieces, corners can also be handled in place;
5. The adhesion and glossiness of the coating are also relatively high;
1. Where you intend to use the aluminium profiles?
2. If you have the estrusion drawing, send us and we develop the correspondence mold.
3. Which color you want or tell us the architectural style you like.
4. Purchase quantity. It will convenient us to give you the best price.
