Product Details:

Place of Origin: Guangdong,China(mainland)
Brand Name: HONG YING
Certification: ISO9001:2015,ISO14001:2015
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 3 tons
Price: Negotiation
Packaging Details: protective film for each piece, then each bundle in shrinking bag/pearl cotton/Kraft paper.or according to customer request
Delivery Time: Within 25-35 days after receive deposit and moulds are passed.
Payment Terms: T/T,L/C,D/A, D/P,
Supply Ability: 6000 tons per month
Get Best Price Contact Now

Detail Information

Material: Aluminum Alloy 6063 6061 Thickness: 0.8-2.0mm
Temper: T5,T6 Usage: Modular Solutions,Aluminum Outdoor Frame
Trademark: OEM HS Code: 7604299000999
High Light:

6063 T5 Anodized Aluminum Profiles


Modular Anodized Aluminum Profiles


7604299000999 aluminium door frame

Product Description

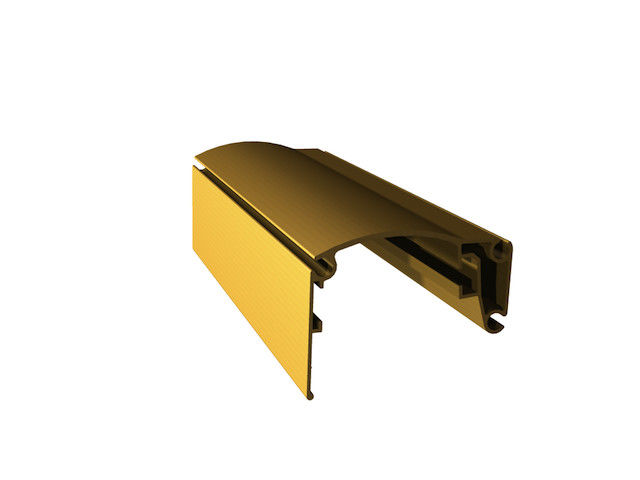

6063 T5 Anodized Aluminum Profiles Outdoor Modular Use 7604299000999

6063 T5 Aluminum Profiles For Aluminium Outdoor Frame Modular Solutions


Introduction of Aluminum Profiles:


The main applications of aluminum profiles in architecture are:
Doors and windows, curtain walls, daylighting roofs, canopies, partitions, decorative materials and structural components, etc.
The characteristics of aluminum profile determine its application in Architecture:
(1) Material stability:
The design structure of aluminum profile conforms to all the principles of architectural mechanics.
Compared with other materials, it has higher corrosion resistance, will not deform due to moisture, will not shrink and soften due to sunlight, and will not become brittle due to freezing and ultraviolet light.
(2) Persistence:
The actual service life of aluminum doors, windows, curtain walls and other products manufactured by adopting the processing method in line with the characteristics of aluminum profiles and through special surface treatment is synchronized with the building.
(3) Wind pressure resistance:
Aluminum profile has good hardness, high tensile strength and high wind pressure resistance. It is more suitable for high-rise buildings.
(4) Easy processing of profiles.
(5) Simple repair and maintenance.
(6) Decorative:
Aluminum alloy profiles have metallic luster, and through oxidation coloring, electrostatic spraying, fluorocarbon spraying and other processes,
Produce hundreds of color products, decorate the colorful world and give us beautiful visual effects.
(7) Economy:
The ratio and density are small, the weight is light, and the profile of the same length and section is only 1 / 3 of that of steel, which has high economy.
(8) Environmental protection:
Aluminum alloy profiles can be recycled after use. The energy consumption during recovery is low, which is only equivalent to 5% of the production of primary aluminum, and the recovery rate during smelting is high, and the loss per cycle is 3.5% - 8.5%, which can be recycled repeatedly, avoiding the waste of resources and environmental pollution.


Product Details:


Description 6063 T5 Aluminum Profiles For Aluminium Outdoor Frame Modular Solutions
Material Thickness(t) t=0.8-2.0 mm
Materiral Aluminum Alloy 6063
Annealing Treatment T3-T8
Color Champagne, Silver White ,Bronze, Grey, Black, (RAL series)etc.
Surface Treatment electrophoresis, anodized, wood grain, polished and etc
Shape Break Bridge,T Shape,Square, Round, Flat, Oval, and according to customer's drawing.
Length Normal length=6m or in customer's order
Usage Building, Production Line, Decoration, Industrial, Transportation, Door and window, etc.

1. Pearl cotton foam for each profile;

2. Wrap with shrink film exterior;

3. Packed according to customer request.


Providing colorful products with various mechanical

performances to adapt all kinds of architectural styles


Features of Electrophoresis:


(1) High temperature water sealing.

This method utilizes the hydration reaction of aluminum oxide film and water to turn the amorphous membrane into a hydrated crystalline membrane.

The hydration reaction can be carried out at both normal and high temperatures, but at high temperatures, especially at the boiling point, the hydrated crystalline membrane is a very stable and irreversible crystalline film. Therefore, the most commonly used aluminum oxide film is treated by boiling water or steam treatment.


(2) Sealing of inorganic salts.

Inorganic salt method can improve the fastness of organic coloring dyes, so it is often used in chemical coloring.


(3) Organic sealing method.

This is the soaking, soaking or coating of the aluminum oxide film. Because of the high cost and the increase of the process flow, it is not easy to use, more or more of the two kinds of methods mentioned above, and the first kind of high temperature hydration is the mainstream.


Implement National Standard GB/5237.2-2008
Ingot State Nonferrous mental industrial standard YS67-93
Chemical Of Oxide Film GB/T3190-96
Class Of Oxide Film AA10 , AA15 ,AA20
Surface Type Matte ,Flat
Colors Silver , White ,Bronze , Champagne
Advantage/Features Corrosion-Resistant , Durable , Shining And Decorative



We have several references in this industry coming from our quality solutions, high level of finish and project management.

The automotive industry has extremely high standards when it comes to finish. It is all about the understanding of the customer product and customizing of the painting line to fit the product.

Controlling the line
A focal point for the automotive industry is fully control of the finishing line and the system in general. Not only the operation of the line, but the data collection for each product passing through the line. It is often essential to have the exact data and documentation of the product from the different processes of the line.

We deliver high quality solutions for the construction of the line, and the technical level of the lines makes us a leading supplier worldwide. Recipe controlling is one of many features we offer our customers.
