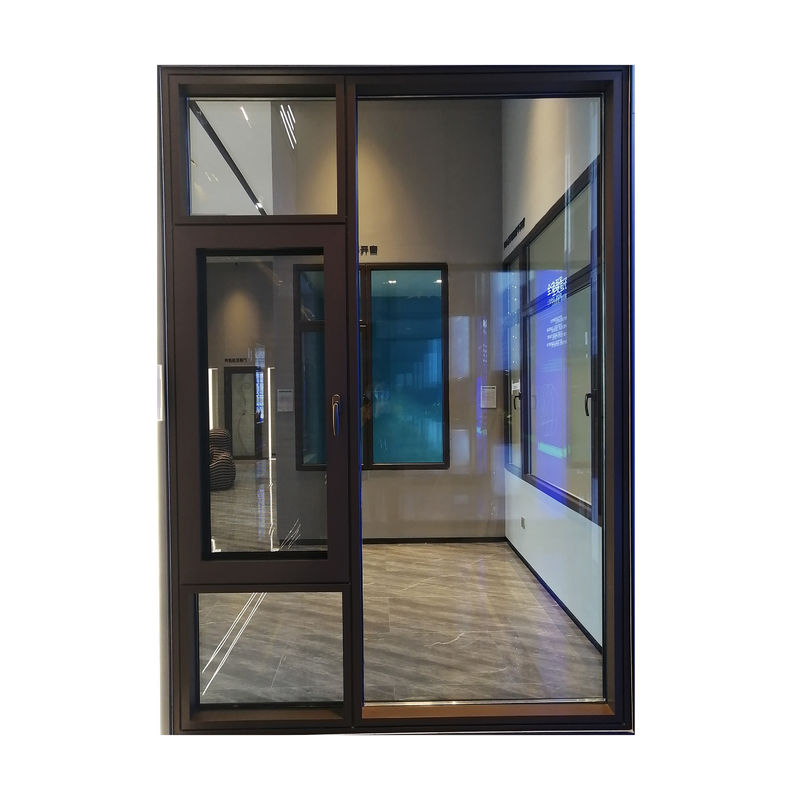

Two Track Casement 5.0mm Windows System Profiles For Building Project
  • Two Track Casement 5.0mm Windows System Profiles For Building Project
  • Two Track Casement 5.0mm Windows System Profiles For Building Project
  • Two Track Casement 5.0mm Windows System Profiles For Building Project

Two Track Casement 5.0mm Windows System Profiles For Building Project

Place of Origin Gaungdong,China(mainland)
Brand Name HONG YING
Certification ISO9001:2015,ISO14001:2015
Model Number Customize
Product Details
Material:
6063 Aluminum Alloy
Temper:
T3-T8
Shape:
Two Track Sliding,three Track Sliding,etc
Color:
Silver,bronze,champagne, Or Base On Requirement
Application:
Building Project
Length:
Standard 6m,or Customized Length
Size:
75mm Series Or 90mm Series
Thickness:
0.8-5.0 Mm
High Light:

5.0mm Windows System Profiles

,

6063 Windows System Profiles

,

OEM Aluminum Window Profiles

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiation
Packaging Details
protective film for each piece, then each bundle in shrinking bag/ pearl cotton/ Kraft paper.or according to customer request
Delivery Time
Within 25-35 days after receive deposit and molds are passed.
Payment Terms
L/C, T/T, D/A, D/P, , MoneyGram
Supply Ability
6000 tons per month
Product Description

Aluminum New Series Two/Three Track Sliding Windows System Profiles for Building Project



Types of windows:


Just as there are many different types of homes, there are many different types of windows and doors. Which one you choose depends on what kind of look you want for your home. Some prefer the abundance of natural light that comes from floor-to-ceiling windows, while others enjoy the hinged operation and even airflow that a casement window affords.

Choosing the right type of window or door is not a simple matter and it requires special attention. You can choose among hinged windows, sliding windows, lift & sliding windows, pivot windows and folding doors. The most important factors which should be taken into account are the width of the spans in which the window or door will be placed, the available interior space (space boundaries, presence of furniture etc.) and the required performance regarding air and water tightness, thermal insulation, sound insulation and security.



Casement Windows
Casement windows provide excellent levels of thermal insulation, sound insulation and tightness against air and water. However, they cannot cover large spans, over 2,00 m wide, even in the case of a double-leaf patio door. They also require the appropriate amount of space inside, so that the window or door can be opened without barriers.
Yonglong offers a wide range of various hinged windows and patio doors:
Opening inwards with or without a tilt function
Opening outwards
Top hung windows (that open outwardly from the bottom)
Vertical or horizontal pivot windows
Combination of sliding and hinged window with a deflection mechanism


Pivot Windows
Pivot windows are a suitable replacement window choice for homeowners who wish to include maximum ventilation in a room. The pivot window sash is secured to the window frame by a pivot mechanism, located mid-way along opposing window sashes which attach the window sash to the frame. The window can then swing inwards either horizontally or vertically, depending on the location of the pivot mechanisms. This leaves the sash suspended in the middle of the frame, held by the opposing pivots. A replacement pivot window provides a window frame option that can open completely.


Sliding Windows
Sliding windows and doors are a very good option in case you need to cover spans which have a width larger than 1.70 m. Moreover, sliding windows are the ideal option when you have limited space around your window. Also, for large spans you can use a technologically superior lift & slide system that is much easier to slide and provides an excellent tightness against air and water, thanks to the special lift mechanism that raises the sash, allowing its rollers to glide smoothly on the rail of the frame. Modern sliding windows and doors have come a long way and provide reliable solutions, with excellent functionality.
Yonglo offers a wide variety of sliding or lift & slide windows and doors:
Horizontal sliding windows – In which multiple sliding windows stand next to each other on separate sliding tracks.
Meeting stile windows – In which two sliding windows stand on the same sliding track and are locked at their connection point in the middle.
Pocket windows – Usually, one or two sliding windows which when opened are hidden into to the wall.
Corner windows – Constructions in which two sliding windows make a right angle (90o) and are locked at their connection point in the corner.


Fixed Windows
Fixed windows are fixed to the wall without any closing or opening operation. In general, they are provided to transmit the light into the room. Fully glazed shutters are fixed to the window frame. This type of window is used in situations where light or vision alone is needed as no ventilation is possible through fixed window.


Bi-folding Windows
If there are very large spans and you want easy access to exterior areas, you can choose a folding door solution. Its main advantage is the full or partial folding of the sashes onto the side of the frame. This solution is usually preferred in professional spaces, as restaurants and cafes or in large houses, providing full freedom of movement and easy access.
To sum up, a vast amount of solutions is provided and that is why you should be careful with some details regarding each particular space. Generally, in order to choose the right type of window or door, you should take into account the following:
The span that you would like to cover (length, width, height)
Climate conditions of the exterior environment.
The layout of the house and its furniture
The access to the window or door, so as to open/close it as well as to be able to clean it inside and outside.
The level of security you want to achieve.
Finally, having your safety and better quality of life in mind, all windows and doors can optionally be combined with insect screens, shutters and rolling shutters. Yonglo offers a wide product range which ensures that you will find the solution that corresponds perfectly to your needs.



Profile Detail:



Description Aluminum New Series Two/Three Track Sliding Windows System Profiles for Building Project
Material Thickness(t) 0.8-5.0 mm
Materiral aluminum alloy 6063,6061
Annealing Treatment T3-T8
Color Bronze, Champagne, Silver, Black, (RAL series)etc.
Surface Treatment anodized, electrophoresis, wood grain, polished and etc
Shape OEM Customer,Square, Round, Flat, Oval, and according to customer's drawing.
Length Normal length=6m or in customer's order
Usage Building, Production Line, Decoration, Industrial, Transportation,  Door and window, etc.
Package 1. Pearl cotton foam for each profile;
2. Wrap with shrink film exterior;
3. Packed according to customer request.
Advantages/Features Providing colorful products with various mechanical
performances to adapt all kinds of architectural styles



Two Track Casement 5.0mm Windows System Profiles For Building Project 0



Aluminum Materials Introduction:



Aluminium is the world’s most abundant metal and is the third most common element comprising 8% of the earth’s crust. The versatility of aluminium makes it the most widely used metal after steel.



Production of Aluminium
Aluminium is derived from the mineral bauxite. Bauxite is converted to aluminium oxide (alumina) via the Bayer Process. The alumina is then converted to aluminium metal using electrolytic cells and the Hall-Heroult Process.Aluminum Window Profiles



Annual Demand of Aluminium
Worldwide demand for aluminium is around 29 million tons per year. About 22 million tons is new aluminium and 7 million tons is recycled aluminium scrap. The use of recycled aluminium is economically and environmentally compelling. It takes 14,000 kWh to produce 1 tonne of new aluminium. Conversely it takes only 5% of this to remelt and recycle one tonne of aluminium. There is no difference in quality between virgin and recycled aluminium alloys.



Applications of Aluminium
Pure aluminium is soft, ductile, corrosion resistant and has a high electrical conductivity. It is widely used for foil and conductor cables, but alloying with other elements is necessary to provide the higher strengths needed for other applications. Aluminium is one of the lightest engineering metals, having a strength to weight ratio superior to steel.

By utilising various combinations of its advantageous properties such as strength, lightness, corrosion resistance, recyclability and formability, aluminium is being employed in an ever-increasing number of applications. This array of products ranges from structural materials through to thin packaging foils.aluminum window profiles



Alloy Designations
Aluminium is most commonly alloyed with copper, zinc, magnesium, silicon, manganese and lithium. Small additions of chromium, titanium, zirconium, lead, bismuth and nickel are also made and iron is invariably present in small quantities.Aluminum Window Profiles

There are over 300 wrought alloys with 50 in common use. They are normally identified by a four figure system which originated in the USA and is now universally accepted. Table 1 describes the system for wrought alloys. Cast alloys have similar designations and use a five digit system.



Photos:

Two Track Casement 5.0mm Windows System Profiles For Building Project 1



Please tell us the information below, and we will give the best suggestion to you !

1. Where you intend to use the aluminium profiles?

2. If you have the estrusion drawing, send us and we develop the correspondence mold.

3. Which color you want or tell us the architectural style you like.

4. Purchase quantity. It will convenient us to give you the best price.
