6063 Extruded Powder Coated Cream Aluminum Profiles For Windows
  • 6063 Extruded Powder Coated Cream Aluminum Profiles For Windows
  • 6063 Extruded Powder Coated Cream Aluminum Profiles For Windows
  • 6063 Extruded Powder Coated Cream Aluminum Profiles For Windows
  • 6063 Extruded Powder Coated Cream Aluminum Profiles For Windows

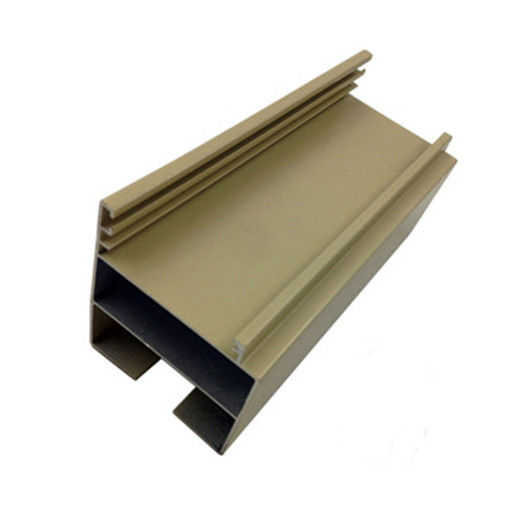

6063 Extruded Powder Coated Cream Aluminum Profiles For Windows

Place of Origin Gaungdong,China(mainland)
Brand Name HONG YING
Certification ISO9001:2000,ISO14001:2004
Model Number Customize
Product Details
Material:
6063 Aluminum Alloy
Temper:
T3-T8
Shape:
Customized,t Shape,break Bridge,thermal Barrier,rectangle,flat, Etc
Color:
Cream,beige,white,black,grey,brown,etc
Application:
Interior Sliding Door System
Surface Treatment:
Powder Coated,matt Powder Coated,shiny Powder Coated,etc
High Light:

Powder Coated Cream Aluminum Profiles

,

6063 Extruded Cream Aluminum Profiles

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiation
Packaging Details
protective film for each piece, then each bundle in Kraft paper.or according to customer request
Delivery Time
Within 25-30 days after receive deposit and moulds are passed.
Payment Terms
L/C, T/T, D/A, D/P, , MoneyGram
Supply Ability
6000 tons per month
Product Description

6063 Extruded Powder Coated Cream Aluminum Profiles For Nigeria Windows Frame System



Profile Specification:



Description 6063 Extruded Powder Coated Cream Aluminum Profiles For Nigeria Windows Frame System
Material Thickness(t) 0.8-2.0 mm
Materiral aluminum alloy 6063
Annealing Treatment T3-T8
Color bronze,champagne,silver,black,etc
Surface Treatment anodized,polishing,brushing,sand blasting,etc
Shape Square, Round, Flat, Oval, and according to customer's drawing.
Length Normal length=6m or in customer's order
Usage Building, Production Line, Decoration, Industrial, Transportation,  Door and window, etc.
Package 1. Pearl cotton foam for each profile;
2. Wrap with shrink film exterior;
3. Packed according to customer request.
Advantages/Features Providing colorful products with various mechanical
performances to adapt all kinds of architectural styles





Aluminum Profile Powder Spraying Introduction:



For aluminum profiles, it is necessary to carry out surface spraying. There are three main spraying methods:

1. Fluorocarbon spraying of Ω rotating disc for aluminum profile: firstly, the workpiece mode is put on the production line, and then the preliminary treatment is carried out, until the Ω rotary disc is used for automatic electrostatic spraying primer, and then the primer is leveled, and then the Ω rotary disc is used for automatic electrostatic spraying of the top coat, and then the finishing coat is applied to the automatic electrostatic spraying finishing paint, and then the leveling cover is applied Finish, then dry and cool naturally until the workpiece is removed from the production line.

2. Vertical electrostatic spraying of aluminum profile matrix: firstly, the workpiece is placed on the production line for preliminary treatment, and then the primer is sprayed with Ω rotary disc, and then the primer is leveled. Then, the top coat is sprayed by electrostatic spray gun automatically, and then the plane paint is flowed. Then, the finishing paint is sprayed automatically by the electrostatic spray gun, and then the finishing paint is dried and natural after the finishing paint is leveled Cool down until the workpiece is removed from the production line.

3. Aluminum profile electrostatic spraying gun fluorocarbon spraying: first, the workpiece is placed on the production line, and then the preliminary treatment is carried out to obtain the automatic electrostatic spraying primer, and the electrostatic spraying gun or rotating cup is used for spraying. Then wait for the primer to be leveled, spray paint on the self-contained electrostatic spraying surface, and then use the electrostatic spray gun to carry out the top coat leveling, and then use the electrostatic spray gun to automatically spray the finishing paint. Wait until the finishing paint is leveled, turned into a solid state, and cooled naturally, until the workpiece is removed from the production line.



Aluminum Window Profiles Types:

6063 Extruded Powder Coated Cream Aluminum Profiles For Windows 0



Bedroom Sliding Window

When the bedroom space is large enough, sliding Windows can be selected to separate sleeping space and other areas, such as study, cloakroom, balcony, etc., to meet the space function division. Meanwhile, double-layer hollow glass filled with argon gas has good sound insulation effect.



Opening the Window can be a quiet study; closing the Window can be a comfortable sleeping environment. Home, shouldn't it be so casual?





Kitchen Sliding Window

Usually the kitchen is adjacent to the dining room. The sliding Window can not only separate the lampblack in the kitchen, but also see the situation in the kitchen. For example, when a lover cooks soup in the kitchen, the busy figure can be seen clearly through the sliding Window, which is conducive to the exchange of feelings between family members.



If the kitchen lighting is poor, the transparent sliding Window can also strengthen the kitchen lighting, let the kitchen say goodbye to the dark state.



Balcony Sliding Window

Many times, do not want to use partition wall directly to separate balcony and living room, you can choose sliding Window. Safety, sound insulation and dust prevention are much better than sliding Windows.



Photos:

6063 Extruded Powder Coated Cream Aluminum Profiles For Windows 1

Corporate Introdiction:



Guangdong Yong long Aluminum Co., Ltd. is located in the No. 10 (Sanjiang market) of Leping Town, Sanshui District, Foshan. The company was founded in 1997. It is a comprehensive and large-scale aluminum profile enterprise integrating the research and development, production and sales of aluminum alloy profiles. The company is leading the "Hong Ying" brand. Strong comprehensive strength and excellent service make Yong long "Hong Ying" sell well all over the country and exported to Southeast Asia, Europe, South America and many other countries.

The company has 900 employees, including 120 high and intermediate engineering technology and management personnel, with advanced and perfect design, production, testing and testing methods as well as perfect sales network and after-sales service system. The products sell well in more than 10 national and foreign ports, Australia and Taiwan areas.



Corporate Certificates:



After years of development, the company passed the ISO9001: 2000 quality system certification, the international standard product certification. Yonglong Aluminum has won the "Guangdong Province Famous Brand", "Guangdong Province Famous Brand", "ISO14001 Environmental Management System Certification", "OHSMS18001 Occupational Health and Safety Management System Certification", "Adopting International Standard Products" Is "," China's quality products "and other certificates. Companies adhere to the scientific concept of development, by strengthening the comprehensive management and increase innovation, and continuously enhance the energy-saving emission reduction enterprises to accelerate into the environment-friendly modern enterprise list.



Welcome to visit our company !
