6063 Anodized Aluminum Profiles / Extrusion Sliding Windows And Doors Frame
  • 6063 Anodized Aluminum Profiles / Extrusion Sliding Windows And Doors Frame
  • 6063 Anodized Aluminum Profiles / Extrusion Sliding Windows And Doors Frame
  • 6063 Anodized Aluminum Profiles / Extrusion Sliding Windows And Doors Frame

6063 Anodized Aluminum Profiles / Extrusion Sliding Windows And Doors Frame

Place of Origin Gaungdong,China(mainland)
Brand Name HONG YING
Certification ISO9001:2000,ISO14001:2004
Model Number Customize
Product Details
Material:
6063 Aluminum Alloy
Shape:
Square, Rectangle, Round, Flat, Angle, T Profile Etc
Temper:
T3-T8
Surface:
Polish, Brush , Blasting, Anodizing
Color:
Silver White,bronze,champagne,black,etc
Bundle Packing:
20-30kg Per Bundle
Load:
Around 13tons For 20GP And 25tons For 40HQ
Payment:
According To Theory Weight Or Actually Weight
High Light:

anodized aluminum frame

,

anodized aluminum extrusions

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiation
Packaging Details
protective film for each piece, then each bundle in Kraft paper.or according to customer request
Delivery Time
Within 15-25 days after receive deposit and moulds are passed.
Payment Terms
L/C, T/T, D/A, D/P, , MoneyGram
Supply Ability
6000 tons per month
Product Description

6063 Extrusion Sliding Windows And Doors Aluminum Profile For Africa Market

Profile Detail:



Description 6063 Extrusion Sliding Windows and Doors Aluminum Profile for Africa Market
Material Thickness(t) 0.8-1.4 mm
Materiral aluminum alloy 6063,6063A,6060,6061
Annealing Treatment T3-T8
Color Silver White ,Bronze , Champagne, Black, (RAL series)etc.
Surface Treatment anodized, powder coated, electrophoresis, wood grain, polished and etc
Shape Square, Round, Flat, Oval, and according to customer's drawing.
Length Normal length=6m or in customer's order
Usage Building, Production Line, Decoration, Industrial, Transportation, Door and window, etc.
Package

1. Pearl cotton foam for each profile;

2. Wrap with shrink film exterior;

3. Packed according to customer request.

Advantages/Features

Providing colorful products with various mechanical

performances to adapt all kinds of architectural styles



Application:



Sliding aluminum doors, also called aluminum sliding door, are widely used as sliding closet doors, sliding cabinet doors, sliding bathroom doors, exterior sliding doors and sliding aluminum folding doors, and so on. They have beautiful appearance and smooth surface, and are wind proofing, water proofing, and anti-erosion.



Corporate Introduction:



Guangdong Yong long Aluminum Co., Ltd. is located in the No. 10 (Sanjiang market) of Leping Town, Sanshui District, Foshan. The company was founded in 1997. It is a comprehensive and large-scale aluminum profile enterprise integrating the research and development, production and sales of aluminum alloy profiles. The company is leading the "Hong Ying" brand. Strong comprehensive strength and excellent service make Yong long "Hong Ying" sell well all over the country and exported to Southeast Asia, Europe, South America and many other countries.

The company has 900 employees, including 120 high and intermediate engineering technology and management personnel, with advanced and perfect design, production, testing and testing methods as well as perfect sales network and after-sales service system. The products sell well in more than 10 national and foreign ports, Australia and Taiwan areas.



Extrusion Produce Process:



Process specification for oxidizing production of aluminium material



Oxidation process



1: The process parameters: the concentration of H2SO4 160-175 g/l, AL3+ < 20 g/l, current density 1-1.5A/dm, voltage 12-16V, oxidation tank temperature 18-22, according to the formulas to calculate the power on time. The film material 3-4 m provisions: silver white sand, 4-5 m, 7-9 m electrophoresis;



2: The anode frame shall be stably placed in the conductive seat and check and confirm that the contact between the profile and the cathode plate can be electrically oxidized;



3: Oxidation end, the anode rod hanging from the surface tilt, and drop the residual liquid, into the clean water tank cleaning for 2 minutes;



4: The non colored section can enter the two stage water tank to be treated with sealing hole.



Coloring process



1: Process parameters: SnSO4 5-6g/l; NiSO4 16-18 g/l; 9-12 g/l 17-20 stain free acid; g/l; pH =0.8-1.2, bath temperature of 19-21 DEG C, coloring voltage should be lower than the oxidation voltage 14-16V; usually add the following ratio: SnSO4:NiSO4=1:1; color additives: SnSO4=1:1



2: Coloring products only with a single row of double row rolling way, the corresponding width of the spacing between two adjacent products or products, generally with the finger test more than two finger width, tie line must be tight, solid bar can only use the new tie line;



3: When the coloring products are oxidized, the oxidation bath temperature must be controlled at 18-22 DEG C to ensure uniform film thickness and fine structure;



4: The coloring area of each row of the coloring products should be basically the same;



5: After coloring, the carrier is inclined and is cleaned with a color guide. After the conditions are met, the water will be washed again. Otherwise, the following conditions will be dealt with;



6: The color is shallow, back into the coloring trough, according to the complementary switch coloring time shall not exceed 2 minutes; deep color, should be put into the corresponding oxidation tank tank fade, or fade to the ideal air suspension so far; oxidation products must be approved by three or more washing before entering the coloring trough a final water washing tank, which was PH 5;



7: The coloring products prohibited in the sink after long-term immersion in oxidation, general soaking time should not exceed 3 minutes;



8: The product enters the coloring trough, should be without electricity, soak for 1 minutes or so, and then began to electrify coloring, coloring process began, about 30s in stably coloring voltage up to 14-18V, and then keep the voltage stable until finished coloring;



9: To avoid as much as possible in different batches of different varieties of products, products are colored in the same frame;



10: The coloring after two times washing before postprocessing, control PH value of the first water washing, PH = 2, PH = 5 second.

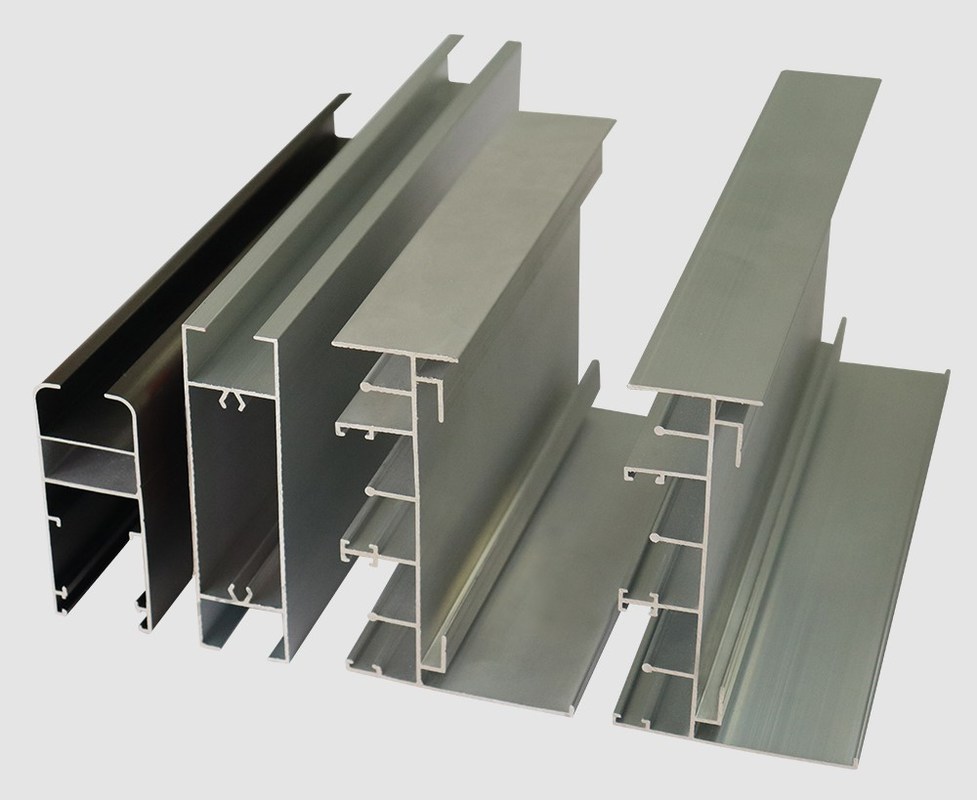

Photos:

6063 Anodized Aluminum Profiles / Extrusion Sliding Windows And Doors Frame 0



Please tell us the information below, and we will give the best suggestion to you !

1. Where you intend to use the aluminium profiles?

2. If you have the estrusion drawing, send us and we develop the correspondence mold.

3. Which color you want or tell us the architectural style you like.

4. Purchase quantity. It will convenient us to give you the best price.
