Payment & Shipping Terms:
|Application:||Door & Window||Shape:||Aluminium Ladder Parts, In Customer's Order|
|Alloy Or Not:||Is Alloy||Material:||6063 Aluminum|
|Port:||Usually Shenzhen Or Guangzhou Port||Company History:||Since 1997|

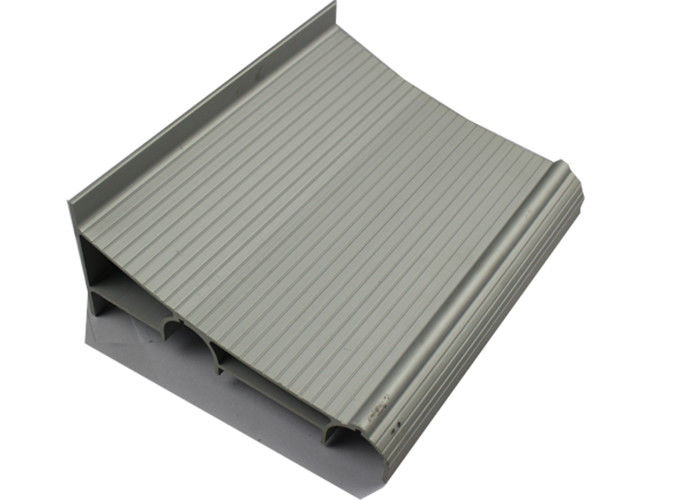

Aluminium extension ladder , aluminium ladder parts Machined Aluminium Profiles
|Product||Aluminium extension ladder , aluminium ladder parts Machined Aluminium Profiles|
|Material||Alloy 6060, 6061, 6063, etc.|
|Color||Different colors available (black, blue, green, champagne, bronze, golden, vermillion, etc.)|
|Surface treatment||Mill finish, anodized, electrophoretic coating, powder coating, thermal break, wood grain/wood-in-shift, etc.|
|Mould||Based on your drawing or use our mould free|
|Sample time||Usual practice: within 15 working days against payment|
|Usages||Windows, doors, curtain wall, solar panel, LED panel, heat sink, industry, etc.|
|Certified||ISO9001-2008 Quality System,|
Process specification for oxidizing production of aluminium material
(1): Process flow:
(1): The silver and silver oxide material electrophoresis
The shelves - bath - water - bath - cryogenic polishing clamp material - oxidation - bath - water - bath - sealing - water - bath - shelf - dry - inspection into the electrophoresis process - packaging
(2): Oxidation of frosted and frosted electrophoretic material
In addition, on oil - bath - acid - water - bath - water - bath - alkali corrosion and light - water - bath - clamp material -- oxidation - bath - washing - bath - sealing - water - bath - shelf - dry - Test - packaging into the electrophoresis process
(3): Oxidation of coloring material and coloring electrophoretic material
The shelves - bath - water - bath - cryogenic polishing clamp material - oxidation - bath - water - bath - coloring - bath - bath - sealing - bath - washing test into the electrophoresis process - frame - Test - dry packing
Consideration of rack count
1: Silicon utilization is not greater than 95%;
2: The current density is 1 - 1.2A/dm;
3: Leave the necessary gap between the profile shape and the two sections
According to the provisions of the "upper shelves must profile area and the upper branch number table";
In order to facilitate drainage and exhaust, the upper binding should be tilted, the slope of 5 degrees is appropriate;
Both ends may exceed the conductive bar 10 - 20mm, at most not greater than 50mm.
(3): Low temperature polishing process
1: Cryogenic polishing tank cryogenic polishing agent concentration control for total acid of 25 30g/l, the lowest was greater than 15 g/l;
2: The polishing bath temperature is not less than 20 DEG C at 20-30 DEG C, and the polishing time is 90 - 200s;
3: When the rack is tilted and the residual liquid is dropped, it is quickly washed into the clean water tank. After two water washing, it is rapidly oxidized into the oxidation tank, and the residence time in the tank should not be greater than 3 minutes;
4: Cryogenic polishing materials shall not be treated in other ways before polishing and no other bath liquid can be brought into the polishing tank.
Corporate Introduction :
Guangdong Yong long Aluminum Co., Ltd. is located in the No. 10 (Sanjiang market) of Leping Town, Sanshui District, Foshan. The company was founded in 1997. It is a comprehensive and large-scale aluminum profile enterprise integrating the research and development, production and sales of aluminum alloy profiles. The company is leading the "Hongying" brand. Strong comprehensive strength and excellent service make Yong long "Hongying" sell well all over the country and exported to Southeast Asia, Europe, South America and many other countries.
The company has 900 employees, including 120 high and intermediate engineering technology and management personnel, with advanced and perfect design, production, testing and testing methods as well as perfect sales network and after-sales service system. The products sell well in more than 10 national and foreign ports, Australia and Taiwan areas.
Please tell us the information below, and we will give the best suggestion to you !
1. Where you intend to use the aluminium profiles?
2. If you have the estrusion drawing, send us and we develop the correspondence mold.
3. Which color you want or tell us the architectural style you like.
4. Purchase quantity. It will convenient us to give you the best price.
Welcome to visit our company !
Choose us & contact us !
Contact Person: Mr. Lee
