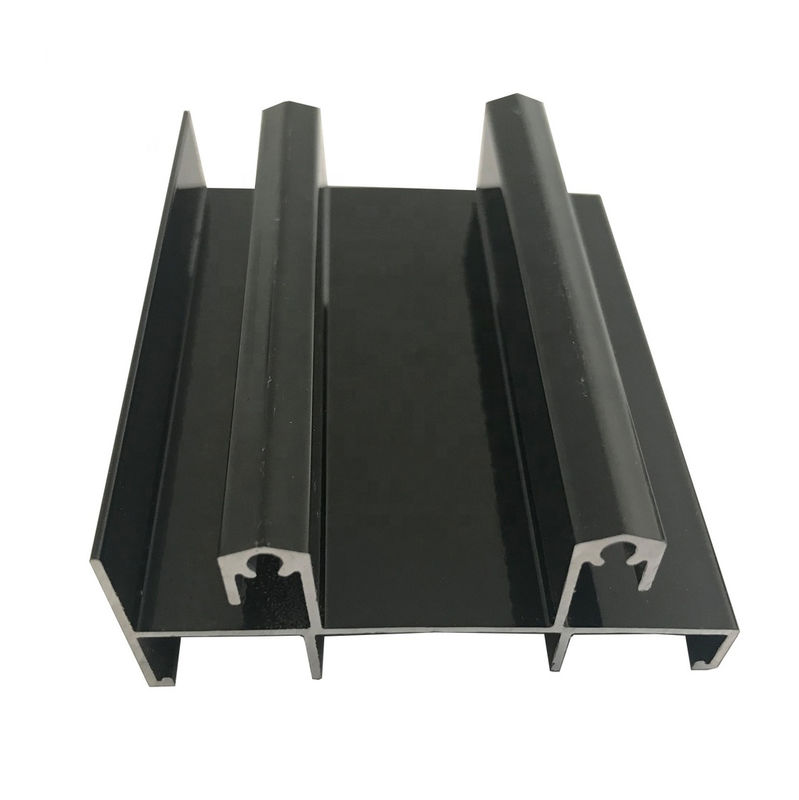

Electrophoresis 0.8mm Aluminum Profile System , 6063 T5 Stock Aluminum Extrusion Profiles

Electrophoresis 0.8mm Aluminum Profile System , 6063 T5 Stock Aluminum Extrusion Profiles

Product Details:

Place of Origin: Guangdong,China(mainland)
Brand Name: HONG YING
Certification: ISO9001:2016,ISO14001:2016
Model Number: Customize

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: protective film for each piece, then each bundle in shrinking paper.or according to customer request
Delivery Time: Within 25-35 days after receive deposit and moulds are passed.
Payment Terms: T/T, L/C, D/P
Supply Ability: 6000 tons per month
Get Best Price Contact Now

Detail Information

Material: 6063 Aluminum Alloy,Nanhai Lingtong Aluminum Thickness: 0.8-2.0mm
Application: Slidingcasement Windows Surface Treatment: Anodized,electrophoresis,etc
Type: Aluminum Extrusions Profiles Size: Maximum 260*260
High Light:

Electrophoresis aluminum profile system

,

6063 T5 aluminum profile system

,

0.8mm stock aluminum extrusion profiles

Product Description

Electrophoresis 0.8mm Aluminum Profile System , 6063 T5 Stock Aluminum Extrusion Profiles

6063 T5 Multi Surfaces Aluminum Window Profiles Extrusion For Chile



Aluminum Profiles Surfaces Treatment Types:



1.Sand blasting
The process of cleaning and roughening metal surface by using the impact of high-speed sand flow. The surface treatment of aluminum parts by this method can make the surface of the workpiece obtain certain cleanliness and different roughness, and improve the mechanical properties of the workpiece surface. Therefore, it improves the fatigue resistance of the workpiece, increases the adhesion between it and the coating, prolongs the durability of the coating film, and is also conducive to the leveling and decoration of the coating.
2. Polishing
Using mechanical, chemical or electrochemical methods to reduce the surface roughness of the workpiece, so as to obtain a bright and flat surface. Polishing process is mainly divided into: mechanical polishing, chemical polishing and electrolytic polishing. After mechanical polishing + electrolytic polishing, it can approach the stainless steel mirror effect, giving people the feeling of high-grade, simple and fashionable future (of course, it is easy to leave fingerprints, and more care should be taken).
3. Wire drawing
Wire drawing is the manufacturing process of repeatedly scraping aluminum plates out of lines with sandpaper. Wire drawing can be divided into straight wire drawing, random wire drawing, rotary wire drawing and thread drawing. The metal wire drawing process can clearly show each fine wire mark, so that the fine hair luster can be reflected in the metal matte. The product has a sense of fashion and science and technology.
4. High gloss cutting
The diamond knife is reinforced on the main shaft of the precision engraving machine with high-speed rotation (generally 20000 RPM) by the precision engraving machine to cut parts, resulting in local bright areas on the product surface. The brightness of cutting highlight is affected by the milling bit speed. The faster the bit speed is, the brighter the cutting highlight is. On the contrary, it is darker and easy to produce knife marks. High gloss cutting is especially used in mobile phones.
5. Anodizing
Anodizing refers to the electrochemical oxidation of metals or alloys. Aluminum and its alloys form an oxide film on aluminum products (anodes) under the action of external current under the corresponding electrolyte and specific process conditions. Anodizing can not only solve the defects of aluminum surface hardness and wear resistance, but also prolong the service life of aluminum and enhance the beauty. It has become an indispensable part of aluminum surface treatment. It is the most widely used and very successful process at present.
6. Two Color Anodizing
Two Color Anodizing refers to anodizing on a product and giving different colors to specific areas. The cost of two-color anodizing is high because of the complex process; However, through the comparison between two colors, it can better reflect the high-end and unique appearance of the product.



Profile Specification:



Description 6063 T5 Champagne Anodized Aluminum Window Profiles Extrusion For South America
Material Thickness(t) 0.8-2.0 mm
Materiral  aluminum alloy 6063
Annealing Treatment  T3-T8
Color  Wood, Silver White ,Bronze , Champagne, Black, (RAL series)etc.
Surface Treatment  anodized, powder coated, electrophoresis, wood grain, polished and etc
Shape  Square, Round, Flat, Oval, and according to customer's drawing.
Length  Normal length=6m or in customer's order
Usage  Building, Production Line, Decoration, Industrial, Transportation,  Door and window, etc.
Package 1. Pearl cotton foam for each profile;
2. Wrap with shrink film exterior;
3. Packed according to customer request.
Advantages/Features  Providing colorful products with various mechanical
performances to adapt all kinds of architectural styles





Aluminum Profiles Features:



Corrosion resistance
The density of aluminum profile is only 2.7g/cm3, which is about 1/3 of that of steel, copper or brass (7.83g/ cm3, 8.93g/ cm3, respectively). In most environmental conditions, including in air, water (or salt water), petrochemistry and many chemical systems, aluminum can show excellent corrosion resistance.
conductivity
Aluminum profile is often selected for its excellent conductivity. On the basis of equal weight, the conductivity of aluminum is nearly 1/2 of copper.
Thermal conductivity
The thermal conductivity of aluminum alloy is about 50-60% of copper, which is beneficial to the manufacture of heat exchanger, evaporator, heating appliance, cooking utensil, cylinder head and radiator of automobile.
Nonferromagnetism
Aluminum profile is non ferromagnetic, which is an important feature for the electrical and electronic industries. Aluminum profiles cannot be self ignition, which is important for the application of handling or contacting inflammable and explosive materials.
Processability
The processability of aluminum profile is excellent. In various deformation and casting aluminum alloys, and in the various states after the production of these alloys, the machining characteristics have changed greatly, which requires special machine tools or technologies.
Formability
The allowable deformation is controlled by specific tensile strength, yield strength, ductility and corresponding processing hardening rate.
Recyclability
Aluminum has high recovery, and the characteristics of recycled aluminum are almost the same as that of primary aluminum.



Product Description:

Electrophoresis 0.8mm Aluminum Profile System , 6063 T5 Stock Aluminum Extrusion Profiles 0



FAQ:



Q – What is the average lead time for pre production samples?

A – Our average lead time is normally 7 days for making new samples and 7 days for testing , totally need about 14days.



Q – What is the average lead time for mass production?

A – Our average lead time is delivery within 20-30 days after receive deposit and and moulds/samples are passed.



Q – What is CAD?

A – CAD stands for “computer assisted design” and it is a 3-D program that is used by our clients to provide our technicians with a three-dimensional example of the custom shape that they want made at GUANGDONG YONGLONG ALUMINUM.Aluminium Window Profiles



Q – What is a die?

A – A die is a tool that is used to help forge a custom shape during the extrusion process. The die is made from durable steel so that it can be used again and again to fill the client’s order.



Q – What does extrusion mean?

A – Extrusion is the process that is used to create custom shapes from raw aluminum materials according to a client’s specifications. The raw materials are heated and are then forced through a die to create the desired shape using extreme pressure.
