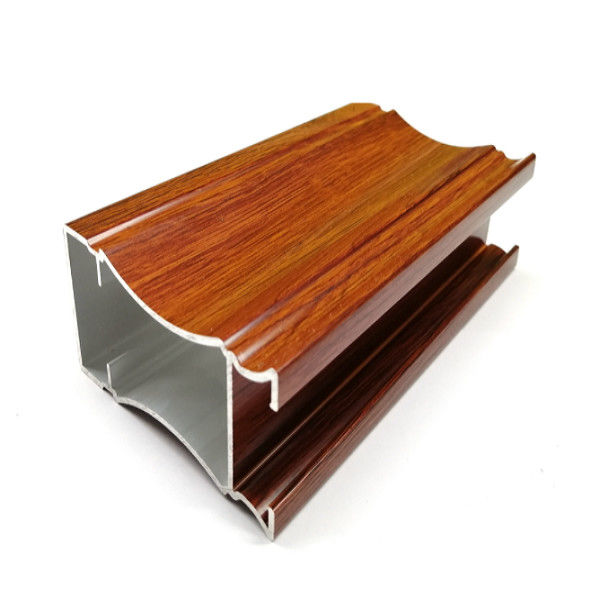

GB523 6000 Wood Grain Aluminum Window Profiles

6063 Wood Finish Aluminium Profiles Heat Transfer Wood Grain Profiles for Outdoor China OEM Factory Good Price

Wood grain transfer profile refers to the transfer of the wood grain pattern on the printing paper or transfer film by heating and pressurizing on the basis of powder spraying or electrophoretic coating, according to the principle of high temperature sublimation heat penetration Penetrate into the profile that has been sprayed or electrophoresed. The wood grain profile produced has clear texture and strong three-dimensional effect, and can better reflect the natural feeling of wood grain. It is an ideal energy-saving and environmentally friendly material to replace traditional wood.

Wood grain has strong adhesion to aluminum, non-toxic, odorless and easy to clean. The product lines are clear and lifelike, the three-dimensional effect is strong, the appearance decoration effect is good, and the visual effect of returning to nature and returning to nature. The coating film on the surface of the sprayed aluminum profile is non-volatile and non-oxidized in the air and does not pollute the environment. The dirt deposited on the sprayed surface can be restored to its original luster and appearance once it is cleaned.

Process 1: Suitable for large area or special-shaped substrate
Suitable for large area or special-shaped substrate
The first step: select the substrate that has been sprayed or electrophoresed
Step 2: Wrap the substrate to be transferred with wood grain heat transfer paper, and fix the paper interface with high temperature resistant adhesive paper to prevent the wood grain heat transfer paper from loosening. (Note: The front side of the wood grain heat transfer paper should be pasted to the surface of the substrate to be transferred.)
Step 3: Put a high-temperature resistant and well-sealed tubular plastic plastic bag on the substrate that has been wrapped by wood-grain heat transfer paper, and then draw a vacuum from both ends of the plastic plastic bag until the plastic plastic bag can Adhere to the substrate fully and effectively.
The negative pressure of the vacuum should be adjusted appropriately according to the characteristics of the substrate to be transferred and the negative pressure that the plastic plastic bag can withstand, usually between 0.3 and 0.8Mpa. (Note: The purpose of using plastic bags is to force the wood grain thermal transfer paper to fully and effectively adhere to the substrate through negative pressure.)
Step 4: Send the wrapped substrate to the oven for baking. The baking temperature and time should be based on the characteristics of the substrate to be transferred, the depth of the texture to be transferred, and the specific performance of the oven. Make appropriate adjustments, usually the transfer temperature is 160~180℃, and the time is 5~8 minutes
Step 5: Take out the transferred substrate from the oven, pull off the plastic plastic bag from one end of the transferred substrate (note: this plastic plastic bag can be reused), tear off the heat transfer paper, Do surface cleaning

Process 2: Suitable for flat substrate
Suitable for flat substrates
The first step: select the substrate that has been sprayed or electrophoresed
Step 2: Lay the front side of the wood grain heat transfer paper opposite to the front side of the substrate to be transferred
The third step: press and heat the flat heat transfer machine, usually the temperature of the transfer is 160~180℃, and the time is 18~25 seconds
Step 4: Tear off the heat transfer paper and transfer with PET heat transfer film

Process 3: Suitable for special-shaped substrates
The first step: select the substrate that has been sprayed or electrophoresed
The second step: Wrap the transferred substrate with PET heat transfer film, and seal the PET heat transfer film into a tubular bag with an ultrasonic sealing machine. (Note: The front side of the PET heat transfer film should be attached to the surface of the substrate to be transferred.)
The third step: Vacuum from both ends of the tubular PET heat transfer film bag until the PET heat transfer film can fully and effectively adhere to the substrate. The negative pressure of the vacuum should be adjusted appropriately according to the characteristics of the substrate to be transferred and the negative pressure that the PET heat transfer film can withstand, usually between 0.3 and 0.8Mpa
Step 4: Send the wrapped substrate to an oven for baking. The baking temperature and time should be based on the characteristics of the substrate to be transferred, the depth of the texture to be transferred, and the specific performance of the oven. Make appropriate adjustments, usually the transfer temperature is 160~180℃, and the time is 5~8 minutes
Step 5: Take out the transferred substrate from the oven, and remove the PET thermal transfer film by manual or mechanical blowing (that is, blow the PET thermal transfer film tubular bag by blowing).

Guangdong Yong long Aluminum Co., Ltd. is located in the No. 10 (Sanjiang market) of Leping Town, Sanshui District, Foshan. The company was founded in 1997. It is a comprehensive and large-scale aluminum profile enterprise integrating the research and development, production and sales of aluminum alloy profiles. The company is leading the "Hong Ying" brand. Strong comprehensive strength and excellent service make Yong long "Hong Ying" sell well all over the country and exported to Southeast Asia, Europe, South America and many other countries.

Our company has 900 employees, including 120 high and intermediate engineering technology and management personnel, with advanced and perfect design, production, testing and testing methods as well as perfect sales network and after-sales service system. The products sell well in more than 10 national and foreign ports, Australia and Taiwan areas.

Exhibition:

Please tell us the information below, and we will give the best suggestion to you !

1. Where you intend to use the aluminium profiles?

2. If you have the estrusion drawing, send us and we develop the correspondence mold.

3. Which color you want or tell us the architectural style you like.

4. Purchase quantity. It will convenient us to give you the best price.
