ISO14001 Red Powder Coated Aluminium Extrusions For Decoration Section

ISO14001 Red Powder Coated Aluminium Extrusions For Decoration Section

Product Details:

Place of Origin: Guangdong,China(mainland)
Brand Name: HONG YING
Certification: ISO9001:2015,ISO14001:2015,OHSAS7001:2015
Model Number: Customize

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: protective film for each piece, then each bundle in shrinking bag/pearl cotton/kraft paper.or according to customer request
Delivery Time: Within 30-35 days after receive deposit and moulds are passed.
Payment Terms: L/C, T/T, D/A, D/P,etc
Supply Ability: 6000 tons per month
Get Best Price Contact Now

Detail Information

Material: Aluminum Alloy 6063 Thickness: 0.8-5.0mm
Temper: T5,T6 Color: Red
Machine: Vertical Spraying, Application: Decorations,Kitchen,Wardrobe,Windows,Doors,etc
High Light:

Red Powder Coated Aluminium Extrusions

,

ISO14001 Powder Coated Aluminium Extrusions

,

T8 Powder Coated Aluminium Extrusions

Product Description

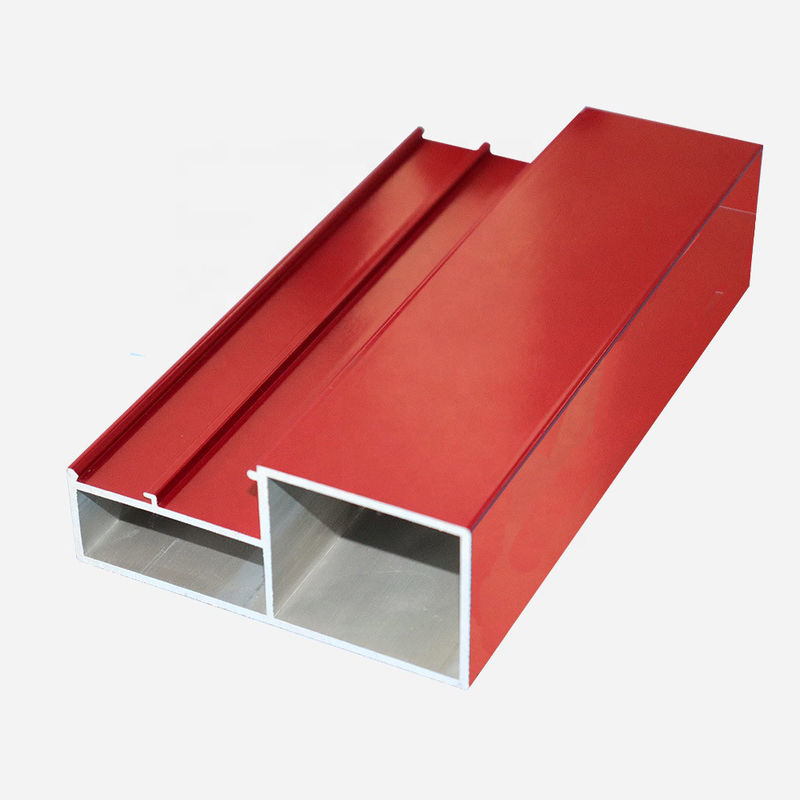

ISO14001 Red Powder Coated Aluminium Extrusions For Decoration Section

6063 T5 Red Powder Coated Aluminum Extrusion Profiles for Decoration

6063 T5 Red Powder Coated Aluminum Extrusion Profiles for Decoration Aluminium Section

Introduction of Powder Coating Line:



Coating line process is divided into: pretreatment, powder spraying coating, heating curing. To manage this process, we need to pay attention to the following points:
(1) Production management of pretreatment section of coating line
Painting line process
Painting line process
The pretreatment includes manual simple process and automatic pretreatment process, and the latter is divided into automatic spraying process and automatic soaking spraying process. The surface of the workpiece must be treated to remove oil and rust before powder spraying. In this section, there are more liquid used, mainly rust remover, degreaser, surface conditioner, phosphating agent and so on.
In the pretreatment section or workshop of the coating production line, the first thing to pay attention to is to formulate the necessary purchase, transportation, storage and use system of strong acid and alkali, provide the workers with the necessary protective clothing, safe and reliable loading, handling and configuration of equipment, and formulate the emergency treatment measures and rescue measures in case of accidents. Secondly, in the pre-treatment section of the coating production line, due to the existence of a certain amount of waste gas, waste liquid and other three waste materials, so in terms of environmental protection measures, it is necessary to configure air extraction and exhaust, liquid discharge and three waste treatment devices.
Due to the different process flow of pretreatment solution and coating production line, the quality of pre-treated workpiece should be different. The oil and rust on the surface of the workpiece with better treatment shall be removed completely. In order to prevent the re rusting in a short time, phosphating or passivation treatment shall be carried out in several processes after the pretreatment. Before powder spraying, the phosphated workpiece shall be dried to remove the surface moisture. Small batch single piece production, generally using natural air drying, sun drying, air drying. For mass production, low-temperature drying, oven or drying channel are generally adopted.
(2) Organization and production of powder spraying coating
For small batch of workpieces, manual powder spraying device is generally adopted, while for large batch of workpieces, manual or automatic powder spraying device is generally adopted. Whether it is manual or automatic powder spraying, quality control is very important. It is necessary to ensure that the powder of the sprayed workpiece is uniform and the thickness is consistent, and to prevent the defects such as thin spraying, missed spraying and rubbing off.

In the process of coating production line, attention should also be paid to the hook part of the workpiece. Before entering the curing process, the powder attached to the hook should be blown off as much as possible to prevent the excess powder on the hook from curing. When it is difficult to remove the excess powder before curing, the solidified powder film on the hook should be stripped in time to ensure good conductivity of the hook, so as to facilitate the next batch of workpieces to be powdered easily.
(3) Production management of curing process in coating line
This process should pay attention to the following: spray good workpiece, if it is a small batch of single piece production, before entering the curing furnace, pay attention to prevent the powder from falling, if there is powder phenomenon, should timely spray powder. When baking, strictly control the process, temperature and time, and pay attention to prevent insufficient curing caused by color difference, over baking or short time.
For large quantities of automatic conveying workpieces, it is also necessary to carefully check whether there is leakage, thin spraying or local dusting before entering the drying channel. If unqualified workpieces are found, it is necessary to prevent them from entering the drying channel and remove them for re spraying as far as possible. If individual workpiece is unqualified due to thin spray, it can be re sprayed and re solidified after curing out of the drying channel.



ISO14001 Red Powder Coated Aluminium Extrusions For Decoration Section 0



Product Details:



Description 6063 T5 Red Powder Coated Aluminum Extrusion Profiles for Decoration
Material Thickness(t) 0.8-2.0 mm
Materiral aluminum alloy 6063
Annealing Treatment T3-T8
Color pink,blue,beige,green,white,black,yellow,red,etc, (RAL series)
Surface Treatment powder coated, wood grain, polished and etc
Shape Square, Round, Flat, Oval, and according to customer's drawing.
Length Normal length=6m or in customer's order
Usage Building, Production Line, Decoration, Industrial, Transportation, Door and window, etc.
Package

1. Pearl cotton foam for each profile;

2. Wrap with shrink film exterior;

3. Packed according to customer request.

Advantages/Features

Providing colorful products with various mechanical

performances to adapt all kinds of architectural styles



Corporate Introduction:



Guangdong Yong long Aluminum Co., Ltd. is located in the No. 10 (Sanjiang market) of Leping Town, Sanshui District, Foshan. The company was founded in 1997. It is a comprehensive and large-scale aluminum profile enterprise integrating the research and development, production and sales of aluminum alloy profiles. The company is leading the "Hong Ying" brand. Strong comprehensive strength and excellent service make Yong long "Hong Ying" sell well all over the country and exported to Southeast Asia, Europe, South America and many other countries.



The company has 900 employees, including 120 high and intermediate engineering technology and management personnel, with advanced and perfect design, production, testing and testing methods as well as perfect sales network and after-sales service system. The products sell well in more than 10 national and foreign ports, Australia and Taiwan areas.



ISO14001 Red Powder Coated Aluminium Extrusions For Decoration Section 1



Aluminum Section Usages:



The application of aluminum profile in building is mainly as follows:
Doors and windows, curtain walls, daylighting roofs, awnings, partitions, decorative materials and structural components, etc.
The characteristics of aluminum profiles determine their application in architecture
(1) Stability of material:
The design structure of aluminum profile conforms to all principles in the mechanics of building.
Compared with other materials, it has higher corrosion resistance, will not deform due to moisture, shrink and soften due to sunlight, and will not become brittle due to freezing and ultraviolet rays.
(2) Persistence:
The actual life of aluminum doors and windows curtain wall and other products is synchronized with the building by using the processing method which conforms to the characteristics of aluminum profile and through special surface treatment.
(3) Wind pressure resistance:
Aluminum profile has good hardness, high tensile strength and high wind pressure resistance, which is more suitable for high-rise buildings.
(4) The processability of profile.
(5) Simple maintenance and maintenance.
(6) Decorative:
Aluminum alloy profiles have metallic luster and are produced by oxidation coloring or electrostatic spraying and fluorocarbon spraying,
We have produced hundreds of colors of products, decorated with colorful world, to give us beautiful visual effect.
(7) Economy:
The profile with the same length and the same section is only 1/3 of the steel, which has high economic performance.
(8) Environmental protection:
Aluminum alloy profile can be recycled and reused after use. The energy consumption is low when it is recovered, which is only 5% of the original aluminum production. The recovery rate is 3.5% to 8.5% in each cycle. It can be recycled repeatedly to avoid the waste of resources and environmental pollution.



Photos:

ISO14001 Red Powder Coated Aluminium Extrusions For Decoration Section 2



Please tell us the information below, and we will give the best suggestion to you !



1. Where you intend to use the aluminium profiles?

2. If you have the estrusion drawing, send us and we develop the correspondence mold.

3. Which color you want or tell us the architectural style you like.

4. Purchase quantity. It will convenient us to give you the best price.
