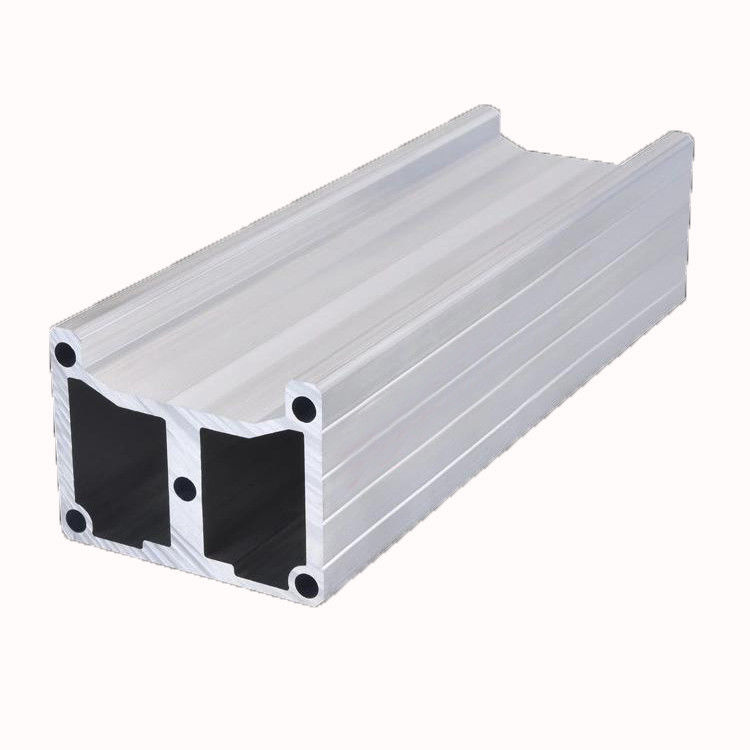

25.0mm Thickness 3030 Aluminium Industrial Profile Mill Finish

Manipulator Aluminum Profile Module Aluminium Extrusion For Machine Use 6061 Alloy

European Standard:

Common European standard aluminum profiles are 2020 / 3030 / 4040 / 4080 / 6060 / 6060 equal section aluminum alloy profiles. The weight of the meter in 2020 is 0.5kg per square meter; There are several specifications for 3030 aluminum profiles, and the weight per meter is generally around 0.9kg per square meter; 4040 aluminum profile also has a variety of cross-sections, and the weight per unit meter ranges from 1.4kg to 2.0kg per square meter; The weight of 4080 profile is 3.2kg, 6060 profile is 2.65kg and 8080 profile is 5.2kg; The weight per meter of 100100 aluminum profile is larger than that of conventional profile, which is 11.26kg. Generally speaking, the weight per meter of European standard aluminum profile ranges from 0.5kg to 11.26kg. For example, the weight per meter of 80160 aluminum profile is 10kg, that of 3060 aluminum profile is 1.75kg, and that of 4590 aluminum profile is 4kg.

Manipulator Aluminum Profiles Advantages:

Compared with steel, aluminum profile can save material cost and assembly time, and assembly is more convenient and simple. Super large section industrial aluminum profile can be used as linear guide rail for truss, gantry beam and structural beam. Aluminum profile with guide rail installation steps; The aluminum material of truss robot is made of high-strength aluminum alloy. After stress relief treatment, it is subjected to ultra cryogenic treatment at 196 ℃ to ensure long-term use and maintain good precision.
Truss robot aluminum profile, large section size up to 200 mm x 300 mm. In order to facilitate the installation, we also provide various specifications of bracket, T-nut and other installation accessories.

Product Details:

Manipulator Application:

The application of robot automation has replaced a lot of human and material resources, making the production process from boring to simple, improving the output, efficiency and quality, which meets the needs of today's rapid development. Most of the simple manipulators are made of standard profiles with large cross-section, high straightness and good ductility. With sensitive linear guides, they can achieve sensitive operation and zero error. In 2015, the company developed a more widely used 8-160160 super large section profile to meet the needs of the market.

With the development of industrial automation and the continuous improvement of science and technology, it is urgent to improve the efficiency of work. It is difficult to meet the requirements of manufacturing industry by manual labor. Therefore, it has become the trend of manufacturing industry to use automatic manipulator equipment to replace human labor and realize industrial automation production.

In the machinery industry, lathe manipulator is widely used. It can be used in assembly of parts, handling and loading of processed parts, especially in automatic CNC machine tools and combination machines. It not only improves the efficiency of labor production, but also replaces human beings to complete high degree, dangerous and repetitive boring work, and reduce the intensity of human labor, which can be said to be one stroke.
The lathe up and down manipulator mainly realizes the complete automation of the machine tool manufacturing process, and adopts the integrated processing technology, which is suitable for the upper and lower materials, workpiece turning, workpiece turning and so on. It avoids the increase of labor intensity caused by labor force, easy to produce industrial accidents, and the efficiency is relatively low. Moreover, the stability of the product quality using manual loading and unloading is not enough to meet the needs of mass production.

Product Photos:

Differences between European and National Standard:

The difference between European standard aluminum profile and national standard aluminum profile:
1. Notch
The notch of European standard aluminum profile is trapezoidal, which is convenient to install T-bolt or T-nut.
The notch of national standard aluminum profile is rectangular, which is generally connected by square nut and hexagon bolt.
2. Chamfering
The four corners of European standard aluminum profile are too circular, and the chamfering is large.
National standard aluminum profile chamfering small, almost right angle.
3. Weight
When the wall thickness and overall dimension are the same, the European standard aluminum profile is heavier than the national standard aluminum profile
National standard aluminum profile is lighter than European standard aluminum profile.
In the 21st century, China's aluminum processing industry is closely combined with the needs of the market and scientific development, so that the traditional aluminum processing materials have gradually completed the transformation to the modern aluminum processing materials, so the varieties of China's aluminum processing materials have changed greatly. The important characteristics of China's aluminum processing materials are high performance, high precision, energy saving and environmental protection.

Please tell us the information below, and we will give the best suggestion to you !

1. Where you intend to use the aluminium profiles?

2. If you have the estrusion drawing, send us and we develop the correspondence mold.

3. Which color you want or tell us the architectural style you like.

4. Purchase quantity. It will convenient us to give you the best price.
