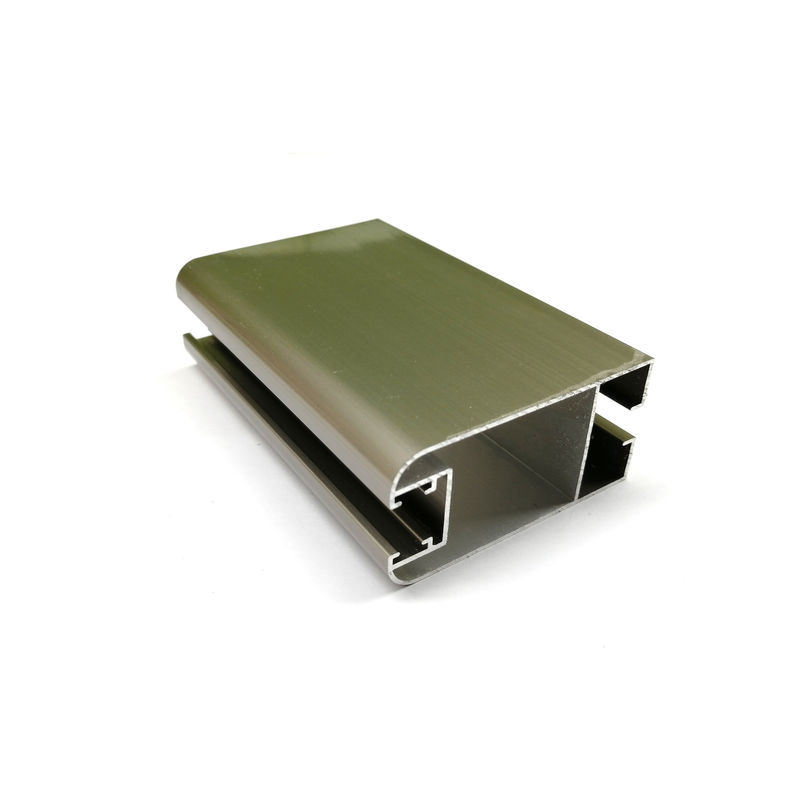

OEM Oxidized Smooth Anodized Aluminum Extrusion Profiles For Doors Frame

OEM Oxidized Smooth Light Champagne Anodized Aluminum Extrusion Profiles For Doors Frame​

Advantages of Oxidation:

Some people may ask why the glass partition only uses the material in aluminum as the frame, instead of steel, wood board, or strength PVC material. In fact, the first two materials mentioned above have been used in Chinese good partitions, but Not ideal, the matching between the materials is wonderful, and this also affects the price positioning of the final product in the market. Below Modular Pipe System Manufacturer and everyone talks about why only use aluminum.

Production and manufacturing process

At present, the domestic aluminum, sheet, or steel technology is very mature. In terms of manufacturing cost, the price advantage of aluminum is not as affordable as PVC. However, comprehensive aesthetics, life, installation and other conditions, undoubtedly, aluminum is suitable.

Advantages of installation efficiency

The installation involves cutting, drilling, and other fixed installations. In short, it is the working hours and difficulty of installation, as well as the impact on the surrounding environment. Aluminum has advantages in the above-mentioned aspects.

Decorability

In this respect, aluminum has some advantages. If you see a wood-framed glass partition on the picture, it may have been achieved by indicating the treatment. Because the design can be diverse and moldable, the aluminum partition is more visual and beautiful than other materials.

In terms of economic benefits

In terms of economic benefits, it is better to choose the glass partition installed with aluminum partitions, because the glass partition made of aluminum partitions can be reused up to 90%, saving the cost of enterprise relocation and decoration. In addition, the short construction period saves time and cost!

The anodization of industrial aluminum profiles is an electrolytic oxidation. The process of forming an oxide film on the anode of the aluminum profile is to increase the hardness of the aluminum profile, expand the use range of the aluminum profile, and increase the service life of the aluminum profile. In the process of anodizing, the color you want to make can be selected, such as black, silver white, red, purple and so on. These need to be made according to user needs. It can be seen from this point that the anodization of industrial aluminum profiles is actually decorative.

The intrinsic oxidation of Aluminum Profiles is actually the color of the finished product is the same as before, there is no difference. It is as if the color of the aluminum ingot is the color of the oxide film formed. Unlike anodizing, there are so many color options. Compared with the advantages of anodizing, such as the protection, decoration, and insulation, the natural oxidation may seem to be slightly insufficient.

Product Details:

Introduction of Electrophoresis:

1. The principle of electrophoresis technology

The electrophoresis is basically the same as the traditional light and transparent electrophoresis. The anode electrophoresis is carried out under the action of direct current. With the action of the electric field, the coated particles with charge are moved to the coated workpiece, which precipitates the electrophoresis coating deposited on the surface of the aluminium profile, forming a layer of film. The difference lies in the different types of coatings and the slightly different devices.

The electrophoretic coating includes acrylic resin, melamine resin, pigments, solvents, neutralizing agents, additives and other ingredients. Through the application of thermal fixing in the viaduct layer in the particle, the shape of the micro-concave coating during the process of baking was basically unchanged in the baking process, and the appearance of the film was formed uniformly. The degree of extinction can be adjusted by the ratio of high gloss paint and low gloss paint.

For profile color, due to the transparency of coating, the color of the product depends on the electrolytic coloring. The color of the profile can also be added to color, white, ivory, green, red, ash, etc., by selecting the color aluminum profile required by adding color pulp. The surface quality is better than spray.

2. Excellent performance of products

high transparency and full measure, with special gloss and transparency, the coating has a high stereo effect, and the color of the substrate is obvious.
the high hardness, when the temperature of 180 ℃ baking 30 min, hardness can be up to 4 to 5 h.
good level of flow, strong paint film, and smooth film.
with strong binding force and penetration, the coating is all-pervasive, and the wet film and dry film have a strong binding force.
the performance is good, resistance to discoloration and corrosion when the baking temperature of 180 ℃ ~ 200 ℃ workpiece does not change color, lasting bright color products, corrosion effect is perfect.
the average of the electrophoresis is good, the paint film is evenly flat, and can reach 10-16 um in 90-200v, high efficiency, and low power consumption.
good impact resistance and artificial sweat resistance.
it can be used for the surface protection of aluminum, metal electroplating, precious metal accessories, lamps and high-end furniture.
it can be electrophoresis with various color slurry: titanium gold, general grey, real black and other colors. due to the superior screening rate of the matte electrophoresis coating, the extrusion mold pattern on the surface of the aluminum material has a certain degree of masking effect.And for the color difference of the dying process, it has a certain degree of compensation effect.

3. The principle and application of paint extinction

With electrophoresis coating technology development, in the coating industry in China, also become the world’s top coating production, forming a related industry group, and actively promote the technological revolution and development of traditional painting domain. During this period, the bright and bright gloss paints are popular with consumers with their bright colors and bright colors, and in a long time, the coating market. However, as people’s living standard has been improved, on the one hand, consumers have felt that the high gloss coating is more serious than the reflection, which is harmful to people’s eyes. On the other hand, the aesthetic concept of consumers is more and more casual, fashionable and personalized. Coupled with the booming demand of China’s electronics and appliance industries. These factors led to a sharp increase in demand for low-gloss coatings with a soft appearance. At the same time, it is necessary to consider how to produce paint with matte performance.

3.1.1 Determination of gloss and luster

The light that is projected onto the surface of the object will reflect the light, and the surface of the object will be reflected in the light. Different surfaces have different gloss, measuring the size of the surface of the light reflected by the light, called glossiness. The gloss is expressed as a percentage, the higher glossiness of the surface, the greater the ability to reflect light and the higher the brightness. The size of the gloss is measured by the photoelectric gloss meter. According to the size of the gloss, the coating can be divided into light, sublight and weak light. Classification of gloss of coatings (with 60 reflections) :

Weak light: gloss less than 10%;
Sublight: gloss 10 ~ 60%;
Light: glossiness > 60%.

3.3 Roughness of the coating surface

The surface gloss of the object is closely related to the roughness of the surface. When the light is on the surface of the object, some of it will be absorbed by the object, some will reflect and scatter, and some will refraction. The smaller the surface roughness, the more light reflected, the higher the glossiness. Conversely, if the surface of the object is uneven, the scattered light increases, resulting in a decrease in the gloss. The surface roughness (h) of a polished object can be perceived by human vision, and the theoretical knowledge of micro surface can be calculated according to the formula: h=λ/cos a, in which λ is the wavelength of incident light; a is the incident Angle. Such as incident Angle when taking 60 °, it calculates the h = 1.1 μm, when the surface roughness of his greater than 1.1 μ m, it will show uneven, glossiness is reduced.

Photos:

Please tell us the information below, and we will give the best suggestion to you !

1. Where you intend to use the aluminium profiles?

2. If you have the estrusion drawing, send us and we develop the correspondence mold.

3. Which color you want or tell us the architectural style you like.

4. Purchase quantity. It will convenient us to give you the best price.
