6063 T5 0.8mm Beige Powder Coated Aluminium Extrusions

6063 T5 0.8mm Beige Powder Coated Aluminium Extrusions

Product Details:

Place of Origin: Guangdong,China(mainland)
Brand Name: HONG YING
Certification: ISO9001:2015,ISO14001:2015
Model Number: Customize

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: protective film for each piece, then each bundle in shrinking ba/pearl cotton.according to customer request
Delivery Time: Within 25-35 days after receive deposit and moulds are passed.
Payment Terms: T/T, L/C, D/A, D/P, , MoneyGram
Supply Ability: 6000 tons per month
Get Best Price Contact Now

Detail Information

Material: Aluminum Alloy 6063 Thickness: 0.8-2.0mm
Color: Beige,white,black,grey,red,blue,brown,etc Temple: T5,T6
Surface Treatment: Air Spray, Airless Spray,Electrostatic Spraying, Powder Coating,etc Application: Building Decoration,aluminum Window Frame
High Light:

0.8mm Powder Coated Aluminium Extrusions

,

T5 Powder Coated Aluminium Extrusions

,

6063 Aluminum Frame Section

Product Description

6063 T5 0.8mm Beige Powder Coated Aluminium Extrusions

6063 T5 Beige Powder Coating Aluminium Extrusions Aluminum Frame Section Factory Price

Product Details:

Description 6063 T5 Beige Powder Coating Aluminium Extrusions Aluminum Frame Section Factory Price
Material Thickness(t) t=0.8-2.0 mm
Materiral Aluminum Alloy 6063
Annealing Treatment T3-T8
Color beige,white,black,grey,red,blue,brown,etc
Surface Treatment sand powder coated, matt powder coated,high glossy powder coted,etc
Shape Square, Round, Flat, Oval, and according to customer's drawing.
Length Normal length=6m or in customer's order
Usage Building, Production Line, Decoration, Industrial, Transportation, Door and window, etc.
Package

1. Pearl cotton foam for each profile;

2. Wrap with shrink film exterior;

3. Packed according to customer request.

Advantages/Features

Providing colorful products with various mechanical

performances to adapt all kinds of architectural styles



Properties of Powder Coating:



Because powder coating does not have a liquid carrier, it can produce thicker coatings than conventional liquid coatings without running or sagging, and powder coating produces minimal appearance differences between horizontally coated surfaces and vertically coated surfaces. Because no carrier fluid evaporates away, the coating process emits few volatile organic compounds (VOC). Finally, several powder colors can be applied before curing them all together, allowing color blending and bleed special effects in a single layer.

While it is relatively easy to apply thick coatings that cure to smooth, texture-free coating, it is not as easy to apply smooth thin films. As the film thickness is reduced, the film becomes more and more orange peeled in texture due to the particle size and glass transition temperature (Tg) of the powder.

Most powder coatings have a particle size in the range of 2 to 50 μ (Microns), a softening temperature Tg around 80 °C, a melting temperature around 150 °C, and are cured at around 200 °C. for minimum 10 minutes to 15 minutes (exact temperatures and times may depend on the thickness of the item being coated). [3] For such powder coatings, film build-ups of greater than 50 μ (Microns) may be required to obtain an acceptably smooth film. The surface texture which is considered desirable or acceptable depends on the end product. Many manufacturers prefer to have a certain degree of orange peel since it helps to hide metal defects that have occurred during manufacture, and the resulting coating is less prone to showing fingerprints.

There are very specialized operations where powder coatings of less than 30 micrometres or with a Tg below 40 °C are used in order to produce smooth thin films. One variation of the dry powder coating process, the Powder Slurry process, combines the advantages of powder coatings and liquid coatings by dispersing very fine powders of 1–5 micrometre sized particles into water, which then allows very smooth, low film thickness coatings to be produced.

For garage-scale jobs, small "rattle can" spray paint is less expensive and complex than powder coating. At the professional scale, the capital expense and time required for a powder coat gun, booth and oven are similar to a spray gun system. Powder coatings have a major advantage in that the overspray can be recycled. However, if multiple colors are being sprayed in a single spray booth, this may limit the ability to recycle the overspray.



Types of Powder Coating:



There are three main categories of powder coatings: thermosets, thermoplastics, and UV curable powder coatings. Thermoset powder coatings incorporates a cross-linker into the formulation.

Most common cross-linkers are solid epoxy resins in so-called hybrid powders in mixing ratios of 50/50, 60/40 and 70/30 (polyester resin/ epoxy resin) for indoor applications and triglycidyl isocyanurate (TGIC) in a ratio of 93/7 and β-hydroxy alkylamide (HAA) hardener in 95/5 ratio for outdoor applications. When the powder is baked, it reacts with other chemical groups in the powder to polymerize, improving the performance properties. The chemical cross-linking for hybrids and TGIC powders-representing the major part of the global powder coating market- is based on the reaction of organic acid groups with an epoxy functionality; this carboxy-epoxy reaction is thoroughly investigated and well understood, by addition of catalysts the conversion can be accelerated and curing schedule can be triggered in time and/or temperature. In the powder coating industry it is common to use catalyst masterbatches where 10-15% of the active ingredient is introduced into a polyester carrier resin as matrix. This approach provides the best possible even dispersion of a small amount of a catalyst over the bulk of the powder.

Concerning the cross-linking of the TGIC-free alternative based on HAA hardeners there is no known catalyst available.

For special applications like coil coatings or clear coats it is common to use glycidylesters as hardener component, their cross-linking is based on the carboxy-epoxy chemistry too. A different chemical reaction is used in so-called polyurethane powders, where the binder resin carries hydroxyl functional groups that react with isocyanate groups of the hardener component. The isocyanate group is usually introduced into the powder in blocked form where the isocyanate functionality is pre-reacted with ε-caprolactame as blocking agent or in form of uretdiones, at elevated temperatures (deblocking temperature) the free isocyanate groups are released and available for the cross-linking reaction with hydroxyl functionality.

In general all thermosetting powder formulations contain next to the binder resin and cross-linker additives to support flow out and levelling and for degassing. Common is the use of flow promoter where the active ingredient -a polyacrylate- is absorbed on silica as carrier or as masterbatch dispersed in a polyester resin as matrix. Vast majority of powders contain benzoin as degassing agent to avoid pinholes in final powder coating film.

The thermoplastic variety does not undergo any additional actions during the baking process as it flows to form the final coating. UV-curable powder coatings are photopolymerisable materials containing a chemical photoinitiator that instantly responds to UV light energy by initiating the reaction that leads to crosslinking or cure. The differentiating factor of this process from others is the separation of the melt stage before the cure stage. UV-cured powder will melt in 60 to 120 seconds when reaching a temperature 110°C and 130°C. Once the melted coating is in this temperature window it is instantly cured when exposed to UV light.[7]

The most common polymers used are: polyester, polyurethane, polyester-epoxy (known as hybrid), straight epoxy (fusion bonded epoxy) and acrylics.



Aluminum Profiles Features:



1. Compared with other commonly used metals, the density of aluminum profile Bai is smaller and lighter. The density of Du is only 2.70 g / cm3, which is 1 / 3 of copper or iron. In the process of using Zhi, the required bearing capacity is not considered at all.

2. In the production process, aluminum profiles are treated by two processes, hot and cold, which have strong corrosion resistance.

3. Aluminum profile has good ductility. It can be made into light alloy with many metal elements, with high quality.

4. Compared with other metal materials, aluminum mold has strong plasticity, good productivity and good advantages for production.

5. Aluminum profiles have good casting properties and can be processed into different shapes of aluminum profiles.

6. The surface treatment performance is good and the appearance color is bright.

7. The chemical property is stable, non-magnetic and can be recycled. It is a kind of benign and recyclable metal material.

8. Small elastic coefficient and no spark in collision and friction make the best performance in automobile technology.

9. It has good thermal conductivity and conductivity, and is outstanding in short distance transmission.

10. Compared with other metal materials, aluminum profiles have no metal pollution, no toxicity and no volatile metal on the surface oxide layer.



Photos:

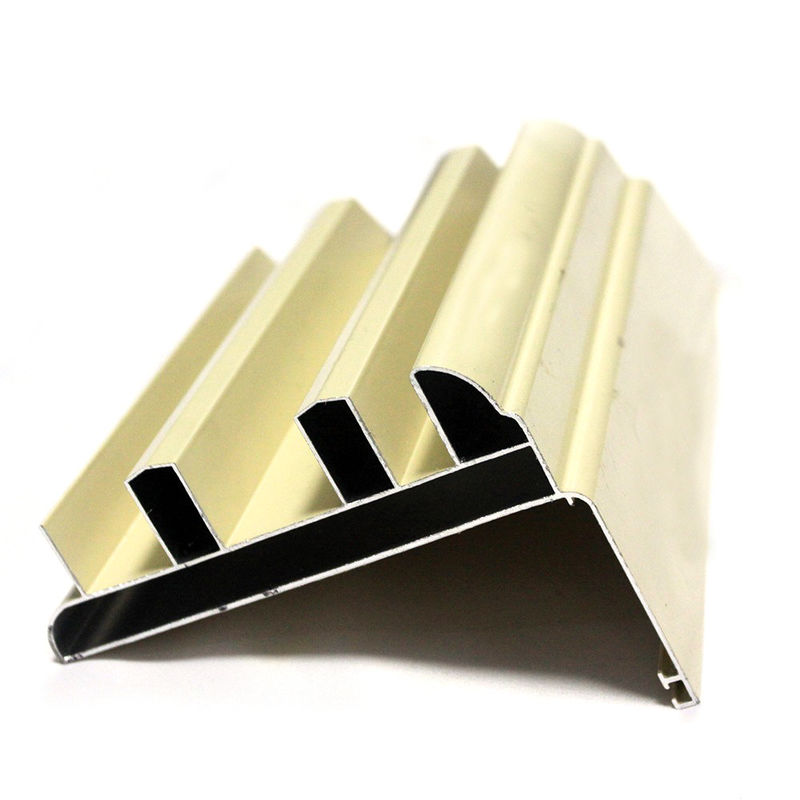

6063 T5 0.8mm Beige Powder Coated Aluminium Extrusions 0

Corporate Introduction:



Corporate Overview:

Guangdong Yong long Aluminum Co., Ltd. is located in the No. 10 (Sanjiang market) of Leping Town, Sanshui District, Foshan. The company was founded in 1997. It is a comprehensive and large-scale aluminum profile enterprise integrating the research and development, production and sales of aluminum alloy profiles. The company is leading the "Hong Ying" brand. Strong comprehensive strength and excellent service make Yong long "Hong Ying" sell well all over the country and exported to Southeast Asia, Europe, South America and many other countries.



Our company has 900 employees, including 120 high and intermediate engineering technology and management personnel, with advanced and perfect design, production, testing and testing methods as well as perfect sales network and after-sales service system. The products sell well in more than 10 national and foreign ports, Australia and Taiwan areas.
